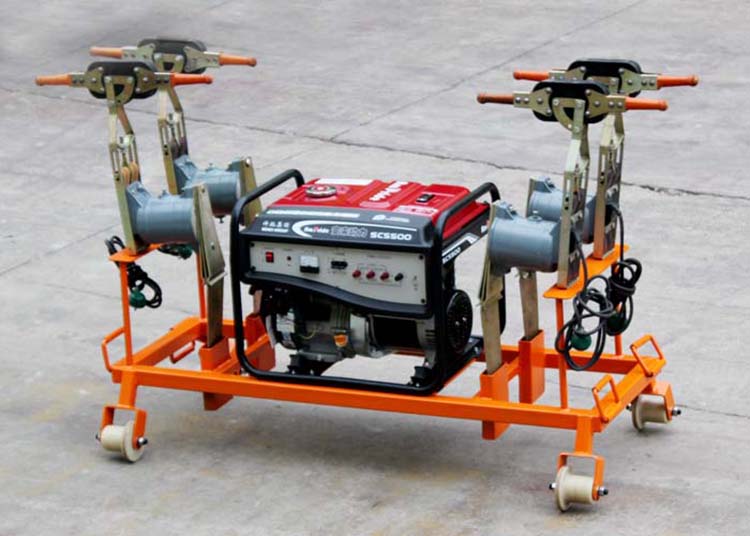

D-3X4 Railway Electric Tamper Machine is consists of a generator and four electric tamping.It’s a multi-purpose machine.
D-3X4 Railway Electric Tamper Machine is consists of a generator and four electric tamping.It’s a multi-purpose machine.
D-3X4 Railway Electric Tamper Machine suitable for railway overhaul, maintenance track bed, ballast tamping operation. It possesses features such as better operation efficiency, small in size, light in weight, easy to use, safe and reliable. It can meet the need of railway ballast tamping operation.
Product | Description |
Model | D-3X4 |
Dimension | 675*150*255mm |
Power | 350W |
Voltage | 380V |
RPM | 2880rpm |
Exciting Frequency | 48Hz |
Exciting Force | 3kN |
Pick Plate Form | Flexible |
Damping Material | Block Rubber |
Weight | 24kg |

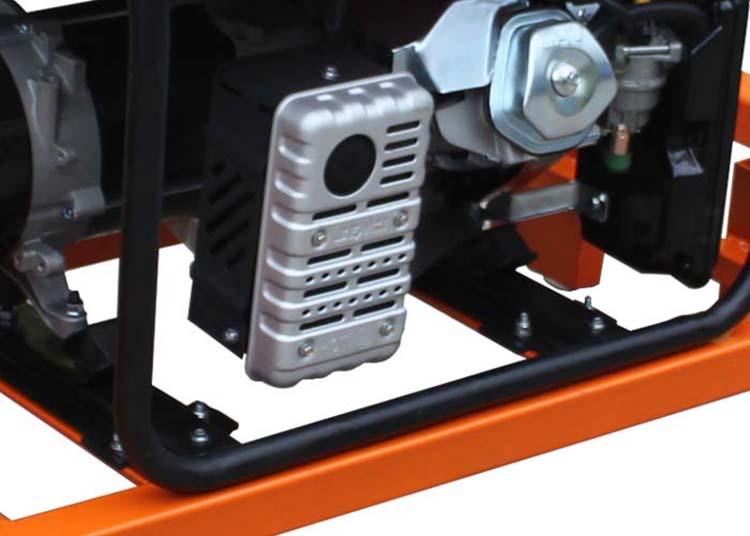

Generator | |
reated power | 5000KW |
Max. Power | 5500KW |
Rated frequency | 50HZ |
Reated voltage | 380V |
