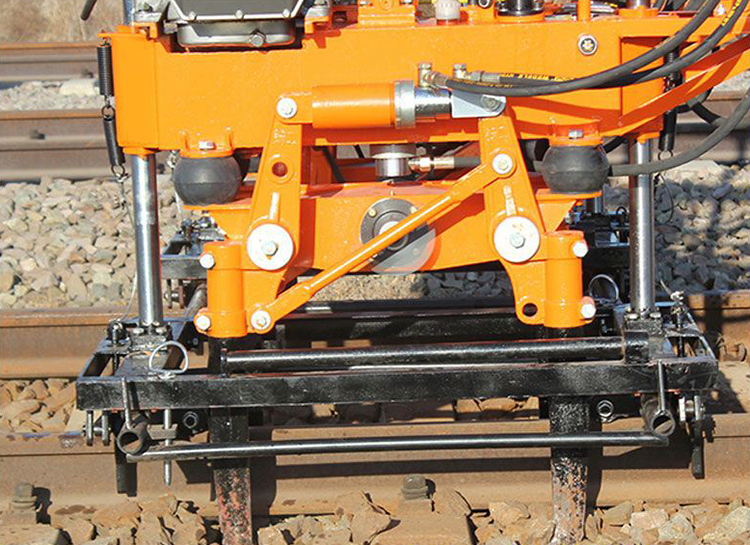

YCD-32 Type Hydraulic Switch Tamping machine It’s suitable for tamping operation within the most complicated and difficult switch section railway maintenance of one meter gauge track.
YCD-32 Type Hydraulic Switch Tamping machine It’s suitable for tamping operation within the most complicated and difficult switch section railway maintenance of one meter gauge track. It can be used to tamp at the section of switcher, turnout connection, frog and guardrail. It is easy to be operated, light in weight, enjoys high working efficiency and low failure rate. It can satisfy railway ballast tamping operation requirement.
Power | 9.5 kw (Honda GX390) |
Vibrating frequency | 66.7Hz |
Exciting force | 31.5kN |
Working system pressure | 4~5MPa |
Inserting depth underneath sleeper | 90~100mm |
Weight | 436kg |
Overall dimension | 1430mm×930mm×1700mm |
Working efficiency | 30min/switch/machine (in normal operating condition) |
