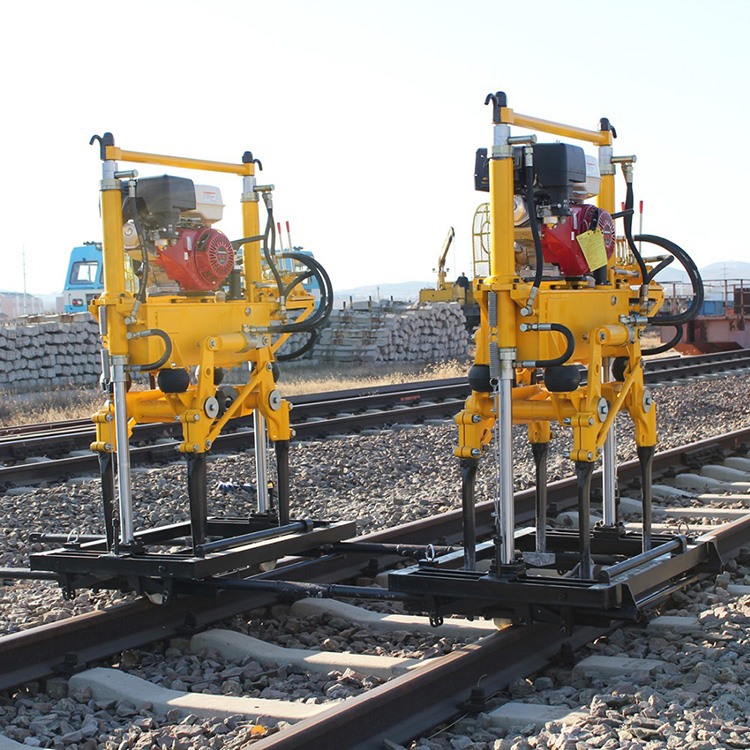

YD-22II rail track tamping use import petrol engine and Diesel Engine,easy moving,two machines organized on set.has removable,compact structure,Big vibration force,high efficiency advantage.
YD-22II rail track tamping use import petrol engine and Diesel Engine,easy moving,two machines organized on set.has removable,compact structure,Big vibration force,high efficiency advantage.The walking frame can moving Horizontal and longitudinal.
YD-22II rail track tamping operation on various rail and sleeper track( ballast cleaning operation)sleeper track overhaul and medium maintenance work.
Model | YD-22II rail tamping machine |
Dimension | 1390*750*1600mm |
Material | Metal and stainless steel |
Color | yellow or orange |
Application | Rail track ballast tamping operation |
Motive power | GX390 petrol engine power:9.5KW, RPM:3600round/min |
Hydraulic pressure | 5~6MPa |
Vibration frequency | 66.7Hz |
Exciting force | 22kN |
Max.under thrust force | 110mm±10mm(beneath the sleeper) |
Production efficiency | ≥ 270pieces/(group/per hour) |
Main frame net weight | 422KG |
Max. under thrust force | 16kN |
Clamping force | 6.5kN*2 |
Under thrust depth | 110mm±10mm (beneath the sleeper) |
Production efficiency | ≥270pieces/(group·per hour) |
Working form | 2 sets works as one group at the same side, it is applicable for double line or single line with wide area. 2 sets works as one group at two sides, it is applicable for single line with narrow area. |
Gauge for walking frame | 1435mm ( if there are special requirements please notify) |
