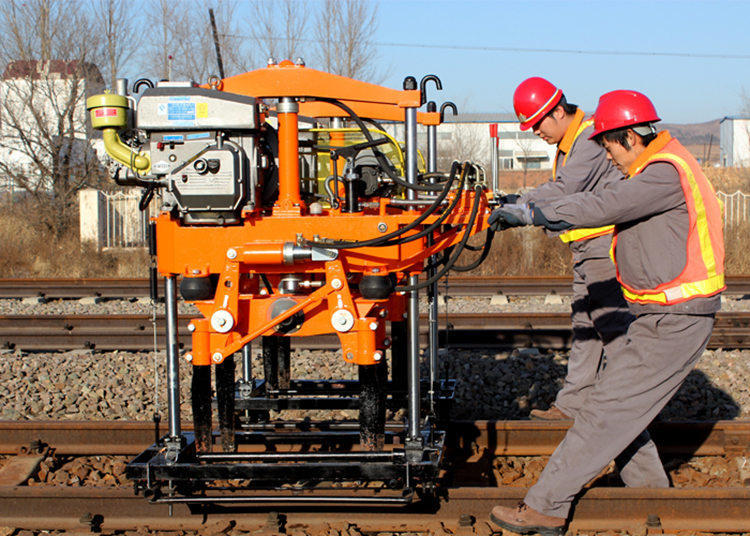

YD-22 rail tamping machine its basic structure and working principle reserves the original advantages, that is of double guide pillar frame and single cylinder lifting mode.
YD-22 rail tamping machine its basic structure and working principle reserves the original advantages, that is of double guide pillar frame and single cylinder lifting mode. It’s able to operate on II type concrete sleeper and III type concrete sleeper, and on various concrete sleeper and rail track.
Model | YD-22 Rail Tamping Machine |
Dimension | 1390*750*1600mm |
Material | Metal and Stainless Steel |
Color | Yellow or Orange |
Application | Rail Track Ballast Tamping Operation |

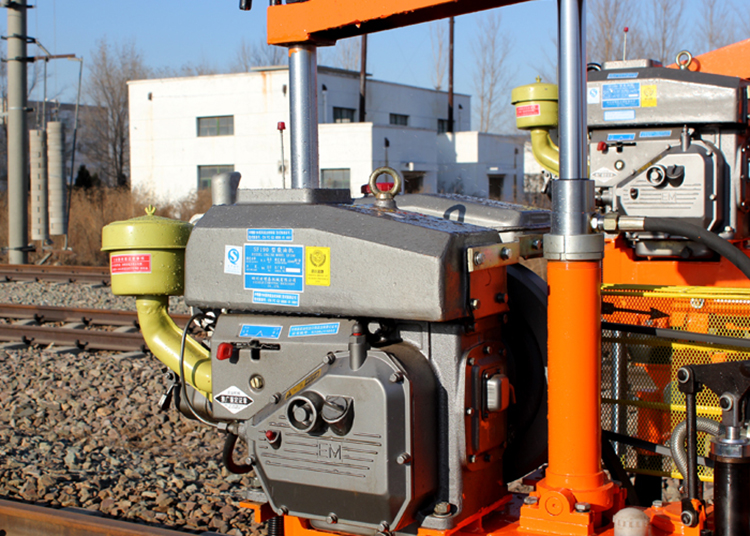

Motive power | SF190 Model Diesel Engine Power :7kW |
Hydraulic pressure | 5~6MPa |
Vibration frequency | 66.7Hz |
Exciting force | 22kN |
Max.under thrust force | 110mm±10mm(Beneath The Sleeper) |
Production efficiency | ≥ 270pieces/(Group/Per Hour) |
Main frame net weihgt | 450KG |
