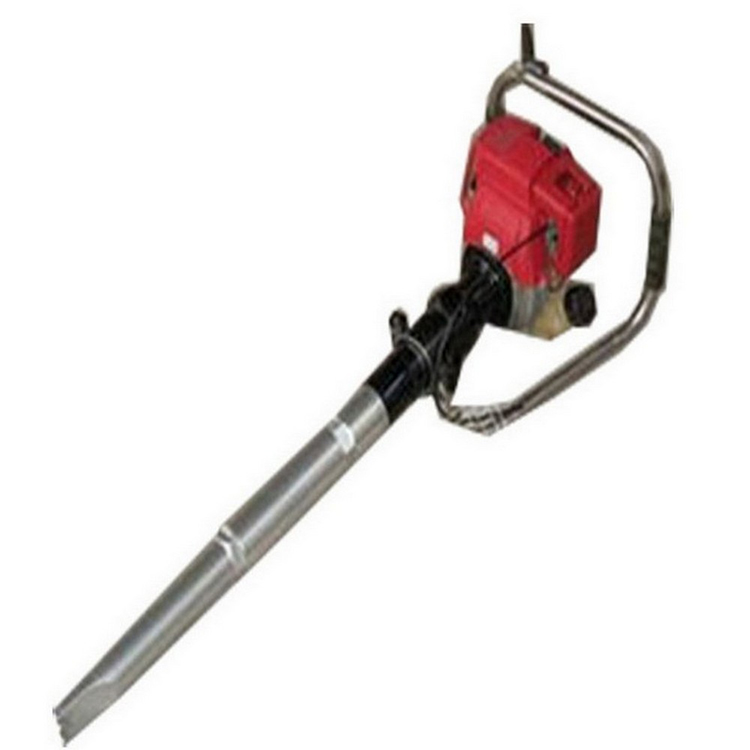

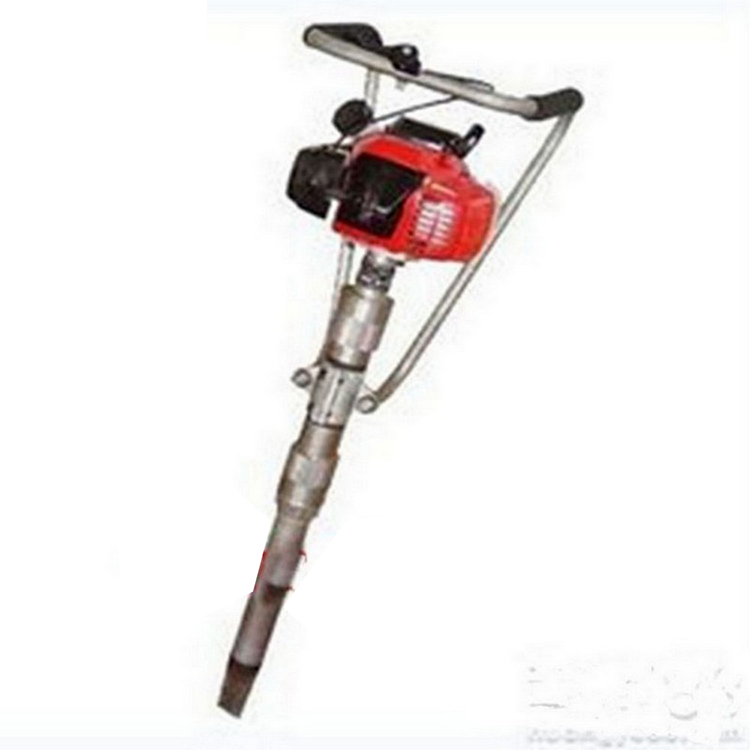

ND-5 2-stroke vertical vibratory railway tamper works in the impact tamping way, with various types of tamping picks, and it is applicable for all breaking and tamping jobs.
ND-5 2-stroke vertical vibratory railway tamper works in the impact tamping way, with various types of tamping picks, and it is applicable for all breaking and tamping jobs.
ND-5 railway tamper adopts with 2 stroke petrol engine, and thin oil lubrication, so that it can continuously work for 2 hours without stop for cooling down.
Perfectly human nature design, the handle frame operate comfortable, it also have the spring shock absorption and accelerator self-control function.
ND-5 railway tamper also comes with the walking trolley, easy and fast transportation.
ND-5 railway tamper has the Wacker tamping tool’s character but selling in the traditional tamping tool’s price.
Model | ND-5 Rail Tamping machine |
Dimension | 1050*350*350 mm |
Material | stainless steel |
Color | red+black |
Application | tamping the ballast |
Model | G4L-D Komatsu Petrol Engine |
Power | 1.42 KW |
Exciting Efficiency | 120-140 Hz |
Exciting Force | ≥4.2 KN |
Working Style | Two Stroke All-round |
Weight | 13.5kg |
rated rpm | 8500r/min |
work mode | two stroke, all directions |
exciting power | 5kN |
The largest free amplitude | 5mm |
The vibration frequency | 117Hz |
Max. Impact power | 500N |
