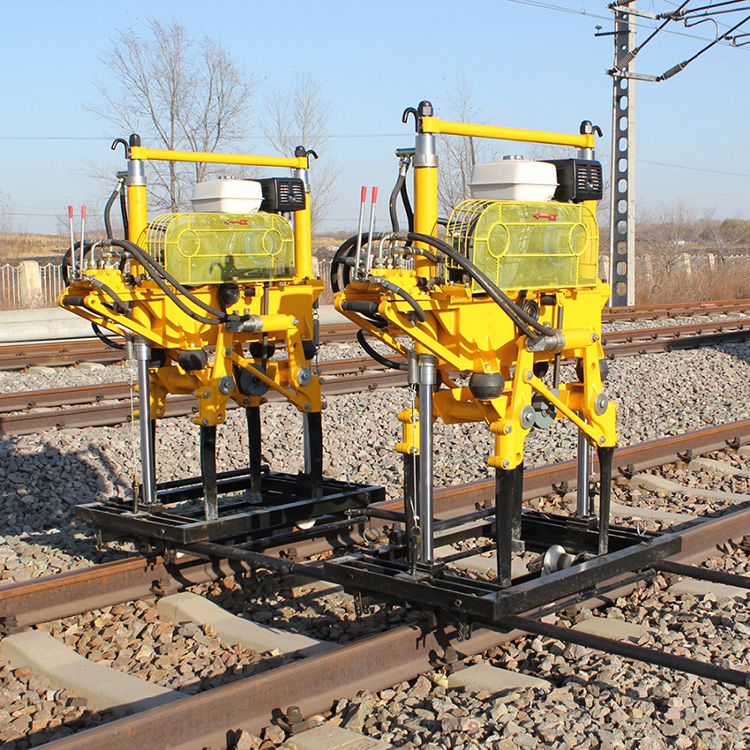

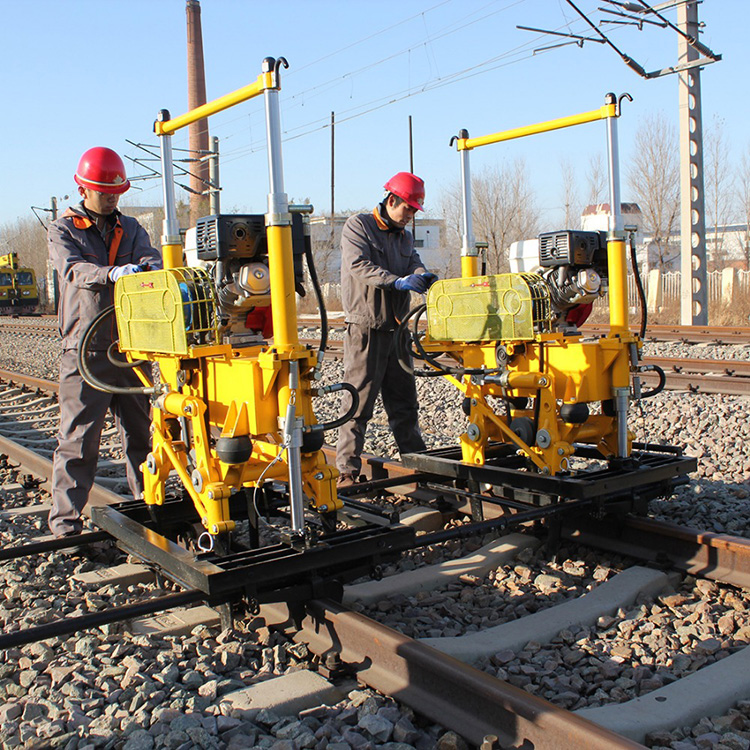

YD-22I hydraulic tamping machine is suitable for heavy repair and maintenance of 60kg / m rail and ballast of concrete sleeper track bed tamping operation.
YD-22I hydraulic tamping machine is suitable for heavy repair and maintenance of 60kg / m rail and ballast of concrete sleeper track bed tamping operation.It can not only be tamped on the track of pan type concrete sleeper, but also be used in I-type concrete sleeper and various foreign steel tamping operation on track line.In case of hydraulic system failure during operation, manual hydraulic pump can be used to work safely and quickly failure does not affect driving safety.If the rail clamp is still clamping the rail after the tamping pick is lifted, the machine is also equipped with safety pin When the safety pin is pulled out (the safety pin adopts the type of adjusting piece body, which overcomes the disadvantage of easy loss after pulling out the safety pin), the jaw can be loosened The machine has the advantages of superior performance, reasonable structure, safety and reliability, high operation efficiency, and can meet the needs of railway ballast tamping operation.
Honda gasoline engine Power | 9ps (6.6kw) |
Revolutions | 3600 rpm |
Working pressure of hydraulic system | 5 ~ 6Mpa |
Vibration frequency | 63.5hz |
Excitation force | 22kn |
Maximum insertion force | 15.57kn |
clip strength | 6.5knx2 |
Depth of insertion | 110mmt 10mm (under 60kg / m rail sleeper) |
Production efficiency | 270 sleepers / group hour |
Net weight | 350kg |
Dimension | 1380 * 750 * 1600mm |
