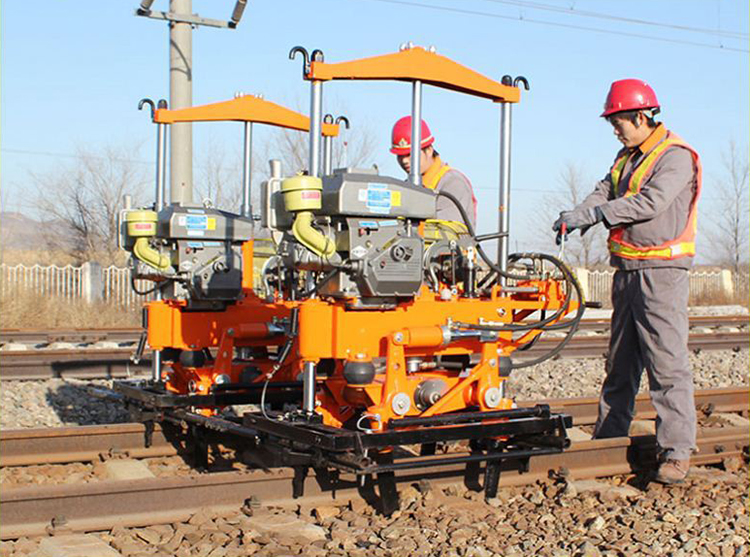

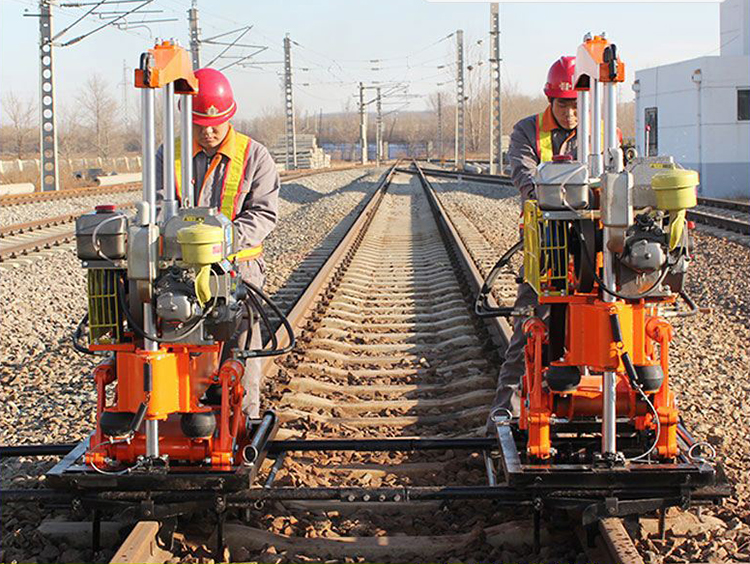

YD-22 rail tamping machine it’s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed.
YD-22 rail tamping machine it’s suitable for tamping operation on various rail and sleeper track after the overhaul and medium maintenance ballast cleaning operation, and also suitable for tamping operation on the new track ballast bed. This machine has the features of high quality performance, reasonable structure, safe and reliable operating capability and high working efficiency, which can satisfy the requirement of ballast tamping operation.
Model | YD-22 Rail Tamping Machine |
Dimension | 1390*750*1600mm |
Material | Metal and Stainless Steel |
Color | Yellow or Orange |
Application | Rail Track Ballast Tamping Operation |
Motive power | SF190 Model Diesel Engine Power :7kW |
Hydraulic pressure | 5~6MPa |
Vibration frequency | 66.7Hz |
Exciting force | 22kN |
Max.under thrust force | 110mm±10mm(Beneath The Sleeper) |
Production efficiency | ≥ 270pieces/(Group/Per Hour) |
Main frame net weihgt | 450KG |
