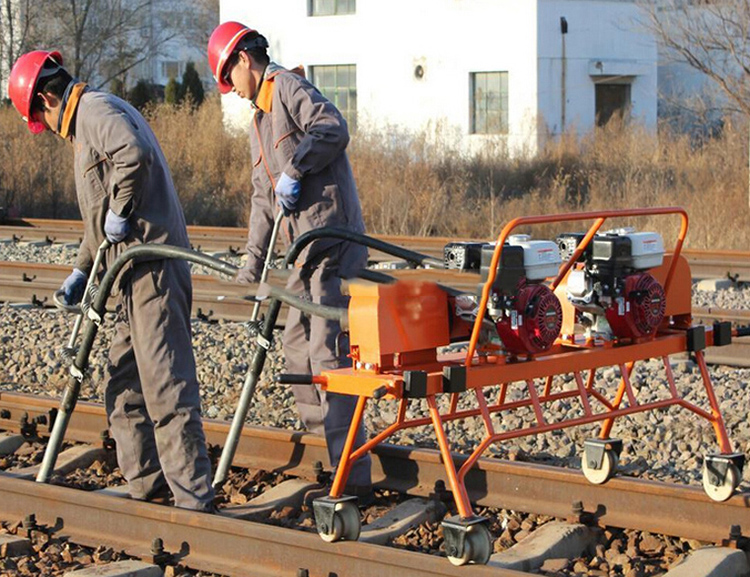

The flexible shaft tamping machine is a new type of railway maintenance machinery.
The flexible shaft tamping machine is a new type of railway maintenance machinery. This machine is suitable for the tamping operation of the railway line ballast bed. When using it, it can be used to list the interval operations. It is convenient to go on and off the road, safe and reliable, and aligns the main line and the switch. Can carry out all-round tamping operation. It has the characteristics of good tamping quality, high work efficiency, and no dead corners. It is an ideal machine for line maintenance, new laying, ballast tamping after ballast cleaning and turnout tamping operations.
Gasoline engine model | GX390 |
Power | 9.5Kw |
Fuel consumption rate | 310G / kW. H |
Lubricating oil capacity | 1.12l |
Vibration frequency | 140-160hz |
Amplitude | 1.25mm |
Exciting force | 4.2kn * 4 |
Production efficiency | ≥ 240 pieces / group hour |
Pick hardness | 55 ~ 60HRC |
Diameter of vibrator | 50mm |
Diameter of flexible shaft | 13mm |
Hose diameter | 36 / 46mm |
Overall dimension | 1770* 750 * 870 mm |
