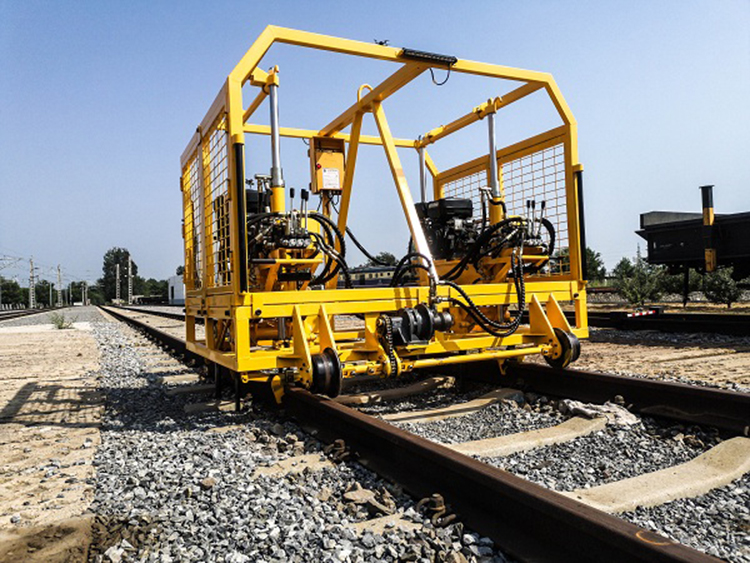

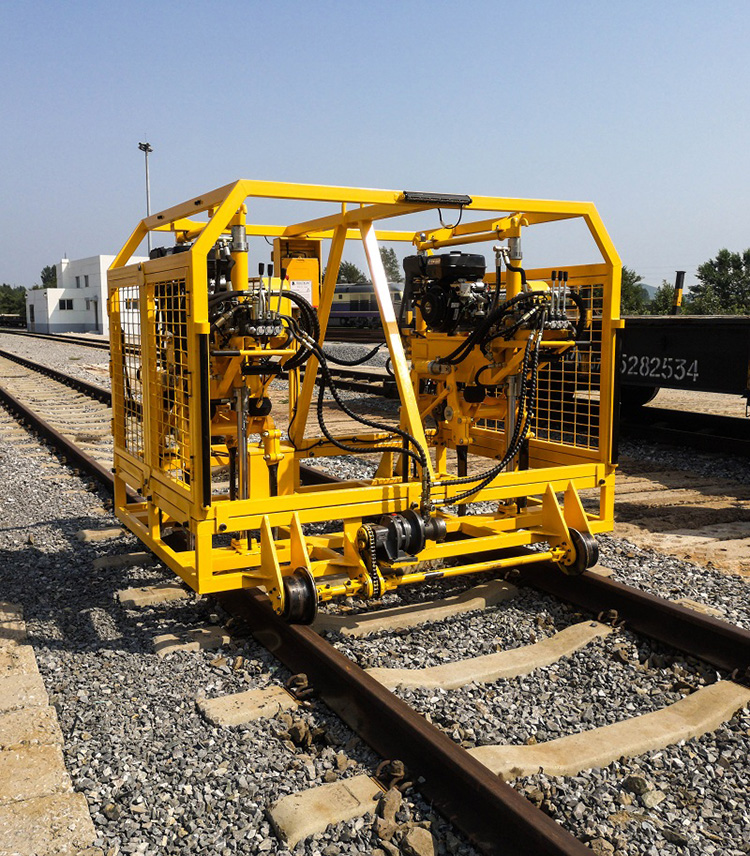

YD-22III Intelligent Hydraulic Tamping Unit is our latest product.
YD-22III Intelligent Hydraulic Tamping Unit is our latest product.
Based on the performance of YD-22II hydraulic tamping machine, the new features are as follows:
1. The bottom frame of tamping machine is equipped with running device and electric control device (electric start engine and remote control tamping machine each function operation), which realizes the characteristics of automatic running and remote control, effectively improves the working efficiency and operation comfort, and reduces the labor intensity.
2. Protective net is installed on both sides of the tamping machine to ensure the safety of operators and the stability of tamping operation. At the same time, it also has front and back lighting function, which can provide better lighting when working at night.
Product | Description |
Model | YD-22III Intelligent Hydraulic Tamping |
Dimension | 2150 * 2200 * 1900 mm |
Material | Metal and stainless steel |
Color | yellow or orange |
Application | Rail track ballast tamping operation |
Motive power | petrol engine power:9.5KW, RPM:3600round/min |
Hydraulic pressure | 5~6MPa |
Vibration frequency | 66.7Hz |
Exciting force | 22kN |
Max.under thrust force | 110mm±10mm(beneath the sleeper) |
Production efficiency | ≥ 260pieces/(group/per hour) |
Rail gauge | 1435mm |
