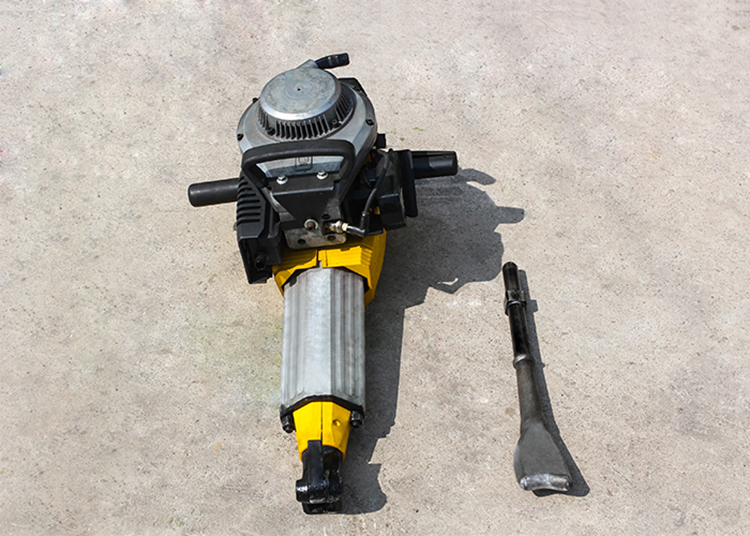

ND-23 hand rail track tamping rammer adopts 1E45F-3A petrol engine enjoying forceful power and high working efficiency.
ND-23 hand rail track tamping rammer adopts 1E45F-3A petrol engine enjoying forceful power and high working efficiency. It features compact and rational structure, beautiful appearance, convenient portability, comfortable operation, safety usage and convenient maintenance.

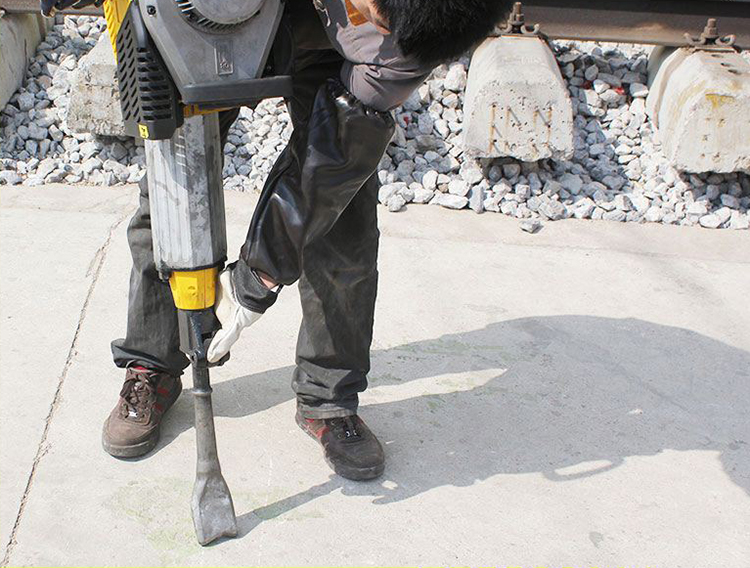

ND-23 hand rail track tamping rammer to crush and demolish in road construction and civil engineering project; To tamp and vibrate the broken stone underneath the rail;
Model | SND-23 Rail Tamping machine |
Dimension | 450 *340 *790 mm |
Material | stainless steel |
Color | yellow |
Application | tamping the ballast |
Model | IE45F-3A Petrol Engine |
Power | 1.45 KW |
Working Speed | 4250 r/min |
Impact Efficiency | Impacting 1300 times/min |
Impact Energy | 55 J |
Weight | 23kg |
max. output power | 2.0/4400kw/r/min |
Displacement (m1) | 80 |
Toolless weight | 23kg |
Shock frequency | 1300/min |
Clutch speed | 2500+250 r/min |
Idle speed | 1800 + 180 r/min |
Fuel/gasoline/oil volume mixing ratio | (25-30):1 |
