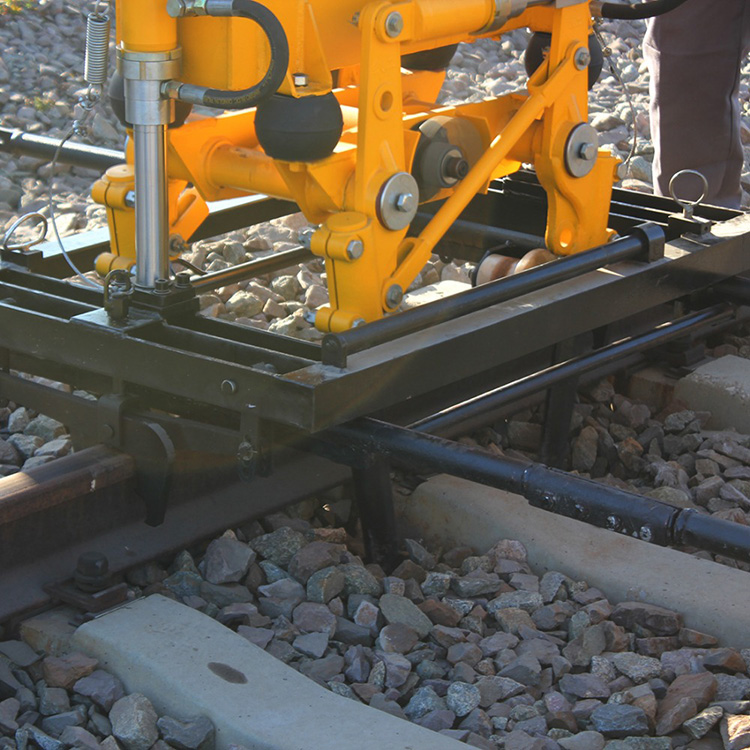

YCD-4 hydraulic switch tamping machine is a special maintenance and repair mechanical equipment for railway turnout.
YCD-4 hydraulic switch tamping machine is a special maintenance and repair mechanical equipment for railway turnout. It is mainly used for ballast tamping at sleeper bottom of turnout section, and can also take into account the tamping effect of ballast on main track bed.It is suitable for tamping turnout of various types of ballast bed of 43kg / M ~ 75kg / m rail.It can also be used for tamping operation of ordinary lines other than turnout.The machine has advanced technical performance and can meet the technical requirements of tamping operation for various types of turnouts.
Internal combustion engine power | 6.6kw |
Vibration frequency | 60Hz ~ 67hz |
Exciting force | 31.5kn |
Working system oil pressure | 4MPa |
Working efficiency | ≥ 260 pieces / hour |
Overall dimension | 1350 * 520 * 1650 mm |
Main engine mass | 300kg / set |
