Pneumatic car stop device involves the technical field of coal mine underground transportation machinery.

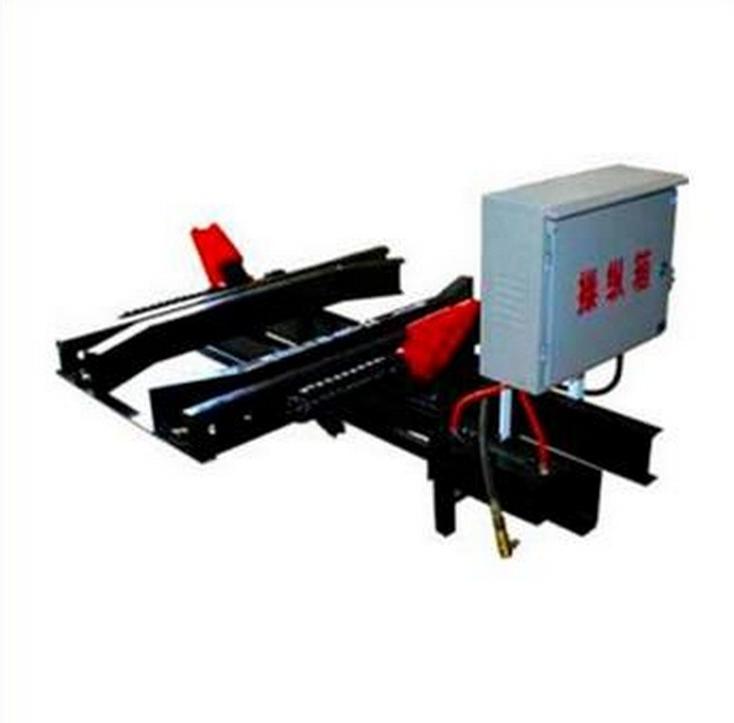

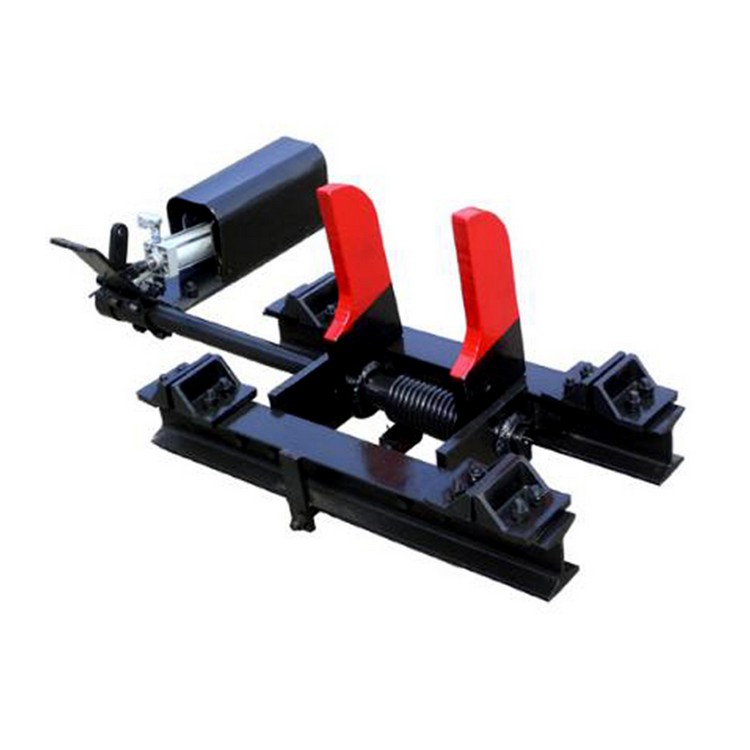

Pneumatic car stop device involves the technical field of coal mine underground transportation machinery. The pneumatic car blocker consists of two parallel fixed bearings and a resistance rod, a front support seat, a rear support base and a pedal linkage device. The two ends of the fixed rail bearing fixed support are respectively fixed on the front support seat and the rear support base, and the resistance rod is placed between the two fixed supports, and the rotating shaft connected between the two fixed supports passes through the stop In the middle of the rod, the resistance rod has a small lower end and a lower end.
1) Block the car function.
2) The function of long-distance monitoring.
3) Simple operation.
4) Strong environmental adaptability.
Model | Track mm | Payload kg | Operate | Track QTY |
ZCQ-6/9/1435-18 | 600/9/1435 | 18 | pneumatic | double |
ZCQ-6-22 | 600/9/1435 | 22 | pneumatic | double |
ZCQ-6-24 | 600/9/1435 | 24 | pneumatic | double |
ZCQ-6-30 | 600/9/1435 | 30 | pneumatic | double |
ZCQ-6-38 | 600/9/1435 | 38 | pneumatic | double |
ZCQ-6-43 | 600/9/1435 | 43 | pneumatic | double |
ZCQ-6-50 | 600/9/1435 | 50 | pneumatic | double |
ZCQ-6-60 | 600/9/1435 | 60 | pneumatic | double |
ZCQ-6-75 | 600/9/1435 | 75 | pneumatic | double |
