The model of electro-hydraulic self-resetting car is ZFY-127, which consists of three parts: the electronic control device of the car stop

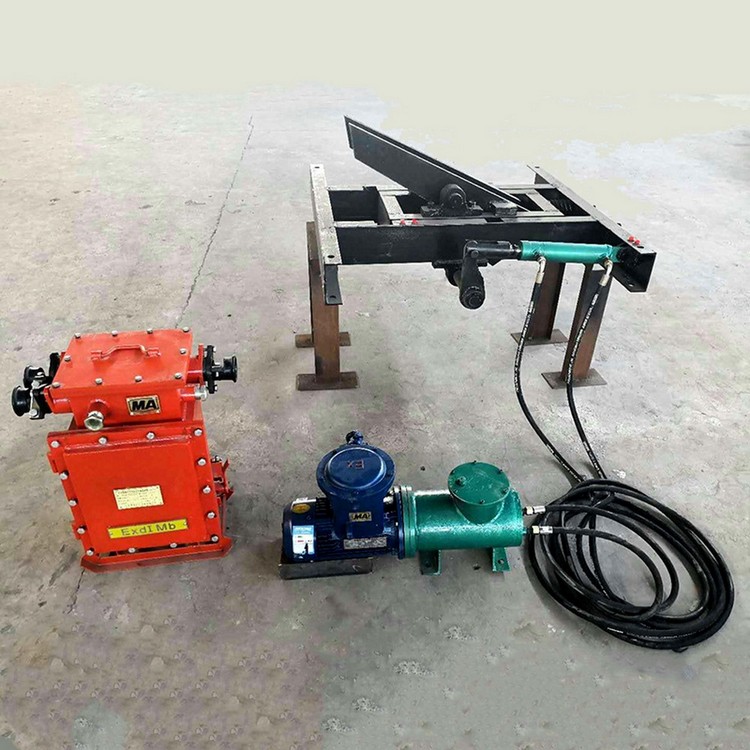

The model of electro-hydraulic self-resetting car is ZFY-127, which consists of three parts: the electronic control device of the car stop, the explosion-proof hydraulic station and the main body of the self-resetting car. The electric control device of the electro-hydraulic self-recovery type vehicle is ZZC127 type. It consists of three parts: mine explosion-proof and intrinsically safe electric control box, intrinsically safe status display and position sensor. Electro-hydraulic self-resetting type vehicle is electronically controlled. The device has a coal safety sign. The electro-hydraulic self-resetting car stop is powered by a mine explosion-proof motor, and uses a hydraulic cylinder as a power-executing component. The electro-hydraulic transmission controls the expansion and contraction of the hydraulic cylinder, thereby realizing the opening and closing of the claw.
Model | ZFY-127 |
Hydraulic system pressure | 2Mpa |
Electric control system model | ZZC127 |
Allow maximum deformation (Nm) | 5600/7800 |
Rated voltage | AC 127V |
Gauge (mm) | 600/762/900 |
Motor voltage | AC 380V/660V |
Applicable tonnage of mining vehicles | 1 ton / 1.5 tons / 3 tons |
Motor power | 1.5KW |
Weight | 255Kg |
