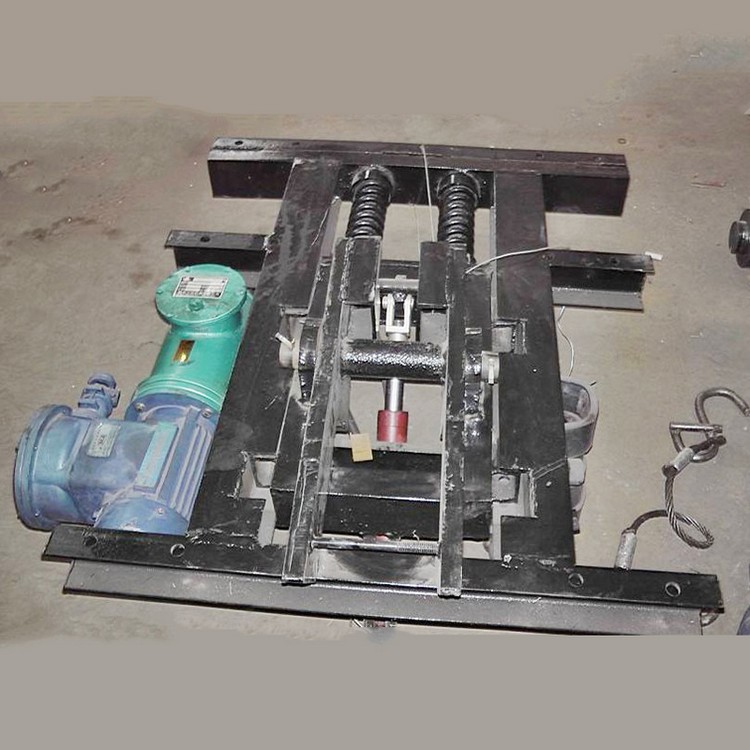

The utility model is composed of a frame, an electric control device, a transmission device and a braking device.
The utility model is composed of a frame, an electric control device, a transmission device and a braking device. The electric control device comprises a power box, a contactor and an electromagnet. The contactor is connected to the power box through a wire, and the electromagnet is connected to the contactor through the wire, the transmission device The upper ends including the rising link, the descending link, the steering plate, the driving rod, the connecting plate, the lifting link and the lowering link are respectively connected with the moving and closing tips of the electromagnet, and the lower ends thereof respectively correspond to the upper end of the steering plate The lower end of the steering plate is connected with one end of the driving rod, and the other end of the driving rod is connected with one end of the connecting plate. The stopping device includes one or more rows of blades, a base and a horizontal link, and each blade passes through the rotating shaft. Associated with the transverse link, one end of the transverse link is associated with the connecting plate.
1. Simple structure, convenient operation, easy installation, convenient maintenance, quick action, safe and reliable, and energy saving;
2.can be operated electrically, can also be manually operated, can also be operated remotely, a multi-purpose machine, low cost.
3. The anti-wheel type electric car stop device is composed of a two-wheel travel switch and the like to form an automatic display device for the position of the claw.
4. can be controlled by buttons, can also be controlled by remote control, no need to manually pull, saving labor and convenience.
In order to play its role, the electric vehicle must be used as a 600mm, 900mm gauge 1 ton, 1.5 ton, 3 ton mine car on the coal mine ground or underground transportation track during installation. Two sets of single-type car stoprs can be used as a double-blocker as needed.
