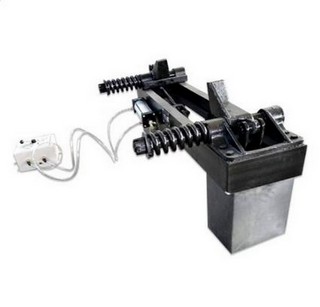

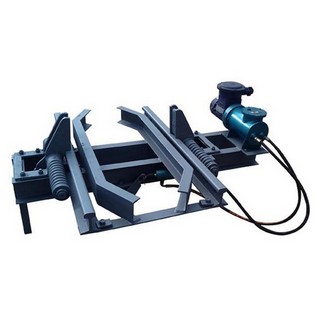

The utility model relates to the technical field of underground coal transportation machinery, and the Monorail Stop is composed of two parallel fixed bearings and a resistance rod, a front support seat, a rear support seat and a pedal linkage device,
The utility model relates to the technical field of underground coal transportation machinery, and the Monorail Stop is composed of two parallel fixed bearings and a resistance rod, a front support seat, a rear support seat and a pedal linkage device, and the single rail brake device fixed support the two ends are respectively fixed on the front support seat and the rear support base, and the resistance rod is disposed between the two fixed supports, and the rotating shaft connected between the two fixed supports passes through the middle of the resistance rod, and the resistance rod is The lower end of the upper end is thick and heavy. In the natural state, the upper end is tilted up. The pedal linkage device is composed of a foot pedal, a pull wire and a lever. The middle portion of the lever is hinged between the two fixed support seats, and the upper end is connected by a pull wire foot pedal connection.
The utility model can automatically block the car, can effectively avoid the deviation caused by the manual car stop, has high safety and reliability, simple structure, convenient installation and simple maintenance.
Model | Track mm | Payload kg | Operate | Track QTY |
ZCQ-6/9/1435-18 | 600/9/1435 | 18 | Handle | single/double |
ZCQ-6-22 | 600/9/1435 | 22 | Handle | single/double |
ZCQ-6-24 | 600/9/1435 | 24 | Handle | single/double |
ZCQ-6-30 | 600/9/1435 | 30 | Handle | single/double |
ZCQ-6-38 | 600/9/1435 | 38 | Handle | single/double |
ZCQ-6-43 | 600/9/1435 | 43 | Handle | single/double |
ZCQ-6-50 | 600/9/1435 | 50 | Handle | single/double |
ZCQ-6-60 | 600/9/1435 | 60 | Handle | single/double |
ZCQ-6-75 | 600/9/1435 | 75 | Handle | single/double |
