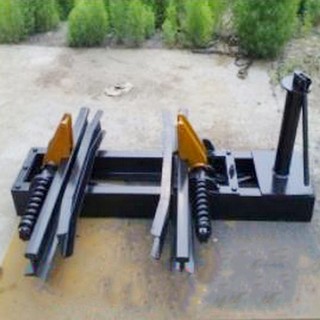

The model of electro-hydraulic self-resetting car is ZFY-127, which consists of three parts: the electronic control device of the car stop, the explosion-proof hydraulic station and the main body of the self-resetting car. The electric control device of the electro-hydraulic self-recovery type vehicle is ZZC127 type.

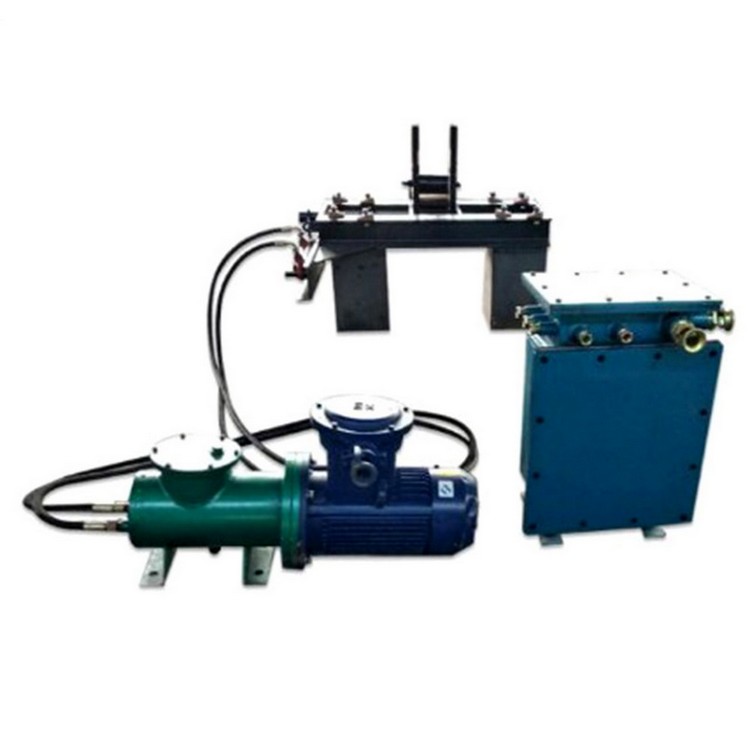

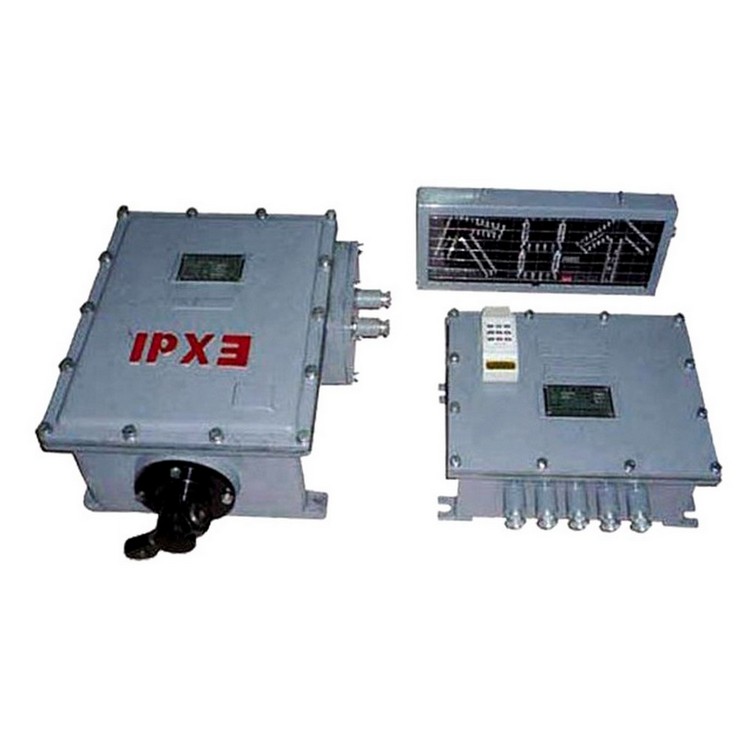

The model of electro-hydraulic self-resetting car is ZFY-127, which consists of three parts: the electronic control device of the car stop, the explosion-proof hydraulic station and the main body of the self-resetting car. The electric control device of the electro-hydraulic self-recovery type vehicle is ZZC127 type. It consists of three parts: mine explosion-proof and intrinsically safe electric control box, intrinsically safe status display and position sensor. Electro-hydraulic self-resetting type vehicle is electronically controlled. The device has a coal safety sign.
1.The utility model has the advantages of simple structure, convenient operation, easy installation, convenient maintenance, quick action, safety and reliability, energy saving, electric operation, manual operation, remote operation, multi-purpose use and low cost.
2.The electro-hydraulic self-resetting car stop not only overcomes some shortcomings of the existing roadblock machine, but also realizes the function of the deceleration slope, which is multi-purpose for one machine.
Model | ZFY-127 |
Hydraulic system pressure | 2Mpa |
Electric control system model | ZZC127 |
Allow maximum deformation (Nm) | 5600/7800 |
Rated voltage | AC 127V |
Gauge (mm) | 600/762/900 |
Motor voltage | AC 380V/660V |
Applicable tonnage of mining vehicles | 1 ton / 1.5 tons / 3 tons |
Motor power | 1.5KW |
Weight | 255Kg |
