The electric car stop is suitable for the new technical field involving coal mine transportation machinery.

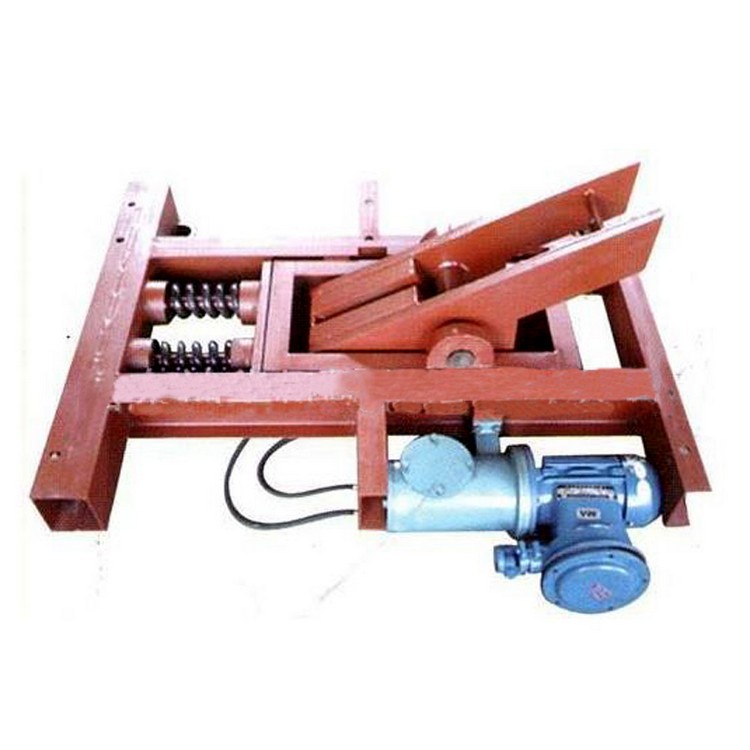

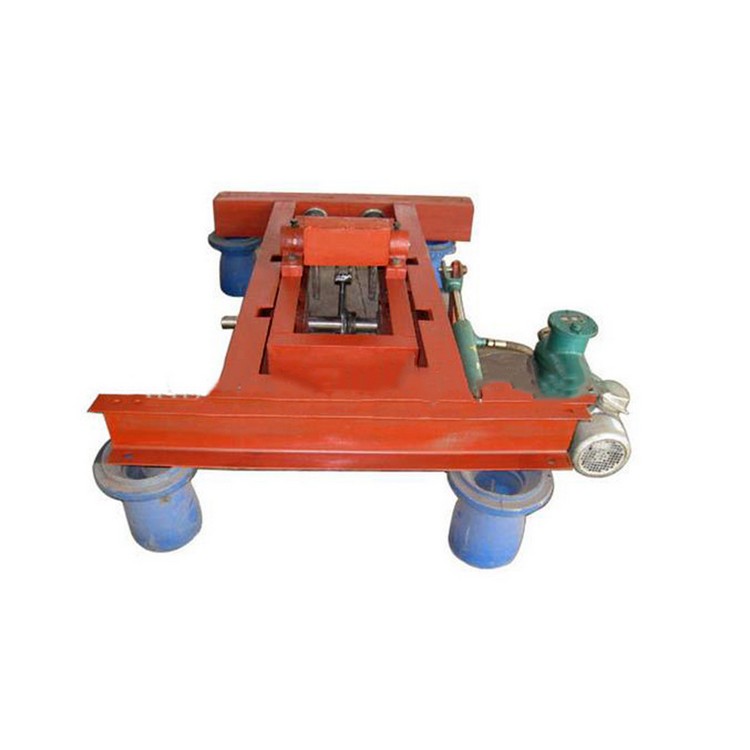

The electric car stop is suitable for the new technical field involving coal mine transportation machinery. The electric vehicle is composed of two parallel fixed bearings and a resistance rod, a front support seat, a rear support base and a pedal linkage device. The two ends of the electric brake fixed support are respectively fixed to the front support seat and the rear. On the support base, the car blocker is placed between the two fixed supports, and the rotating shaft connected between the two fixed supports passes through the middle of the bar, and the bar is thick and heavy at the upper end. In the state, the upper end is tilted, the pedal linkage device is composed of a foot pedal, a pull wire and a lever, and the middle portion of the lever is hinged between the two fixed support seats, and the upper end of the brake device is connected with the foot pedal through a pull wire. .
1. Simple structure, convenient operation, easy installation, convenient maintenance, quick action, safe and reliable, and energy saving;
2.can be operated electrically, can also be manually operated, can also be operated remotely, a multi-purpose machine, low cost.
3. The anti-wheel type electric car stop device is composed of a two-wheel travel switch and the like to form an automatic display device for the position of the claw.
4. can be controlled by buttons, can also be controlled by remote control, no need to manually pull, saving labor and convenience.
In order to play its role, the electric vehicle must be used as a 600mm, 900mm gauge 1 ton, 1.5 ton, 3 ton mine car on the coal mine ground or underground transportation track during installation. Two sets of single-type car stoprs can be used as a double-blocker as needed.
