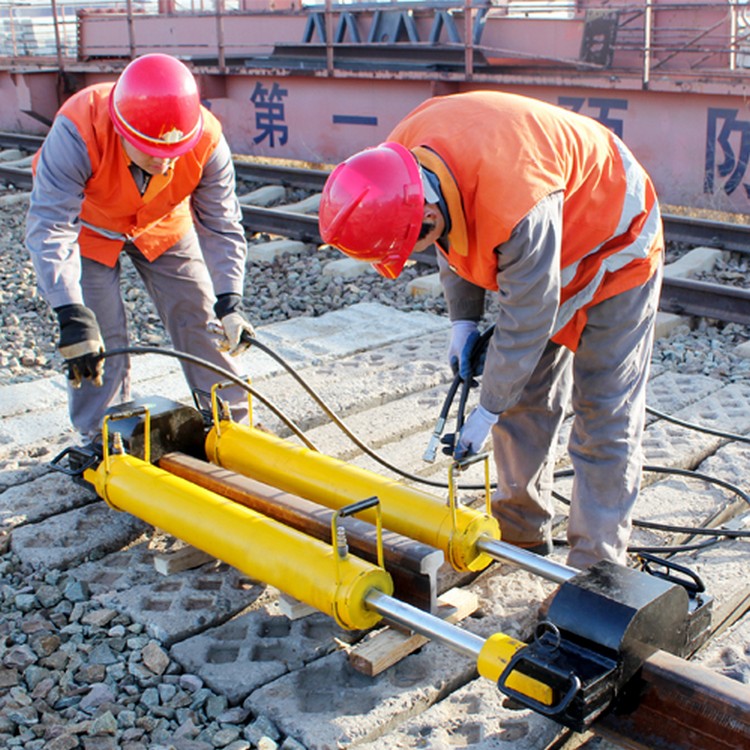

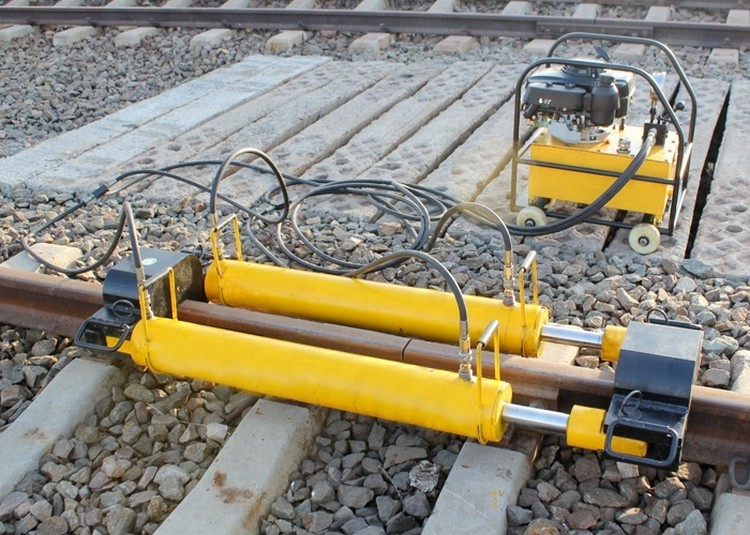

YLS--900 Adjustable Hydraulic Rail Tensor is applicable to 43kg/m-75kg/m super long jointless rail lines. It is used for the rails repairing, stress-relieving and rail gaps adjusting.
YLS--900 Adjustable Hydraulic Rail Tensor is applicable to 43kg/m-75kg/m super long jointless rail lines. It is used for the rails repairing, stress-relieving and rail gaps adjusting.
Max. Rated Working Pressure | 57Mpa |
Max. Rail Pulling Force | 2x450KN |
Oil Cylinder Working Range | ≥760mm |
Center to Center Distance of Two Pull Rods | 610mm |
Lock Mode | Inclined iron clamping rail waist |
Oil cylinder motor power | 3kw |
Voltage | 380v |
Flowing capacity | ≥3L/Min |
Weight | ≤370kg |
Electric pump station | 85kg(oil pipes excluded) |
