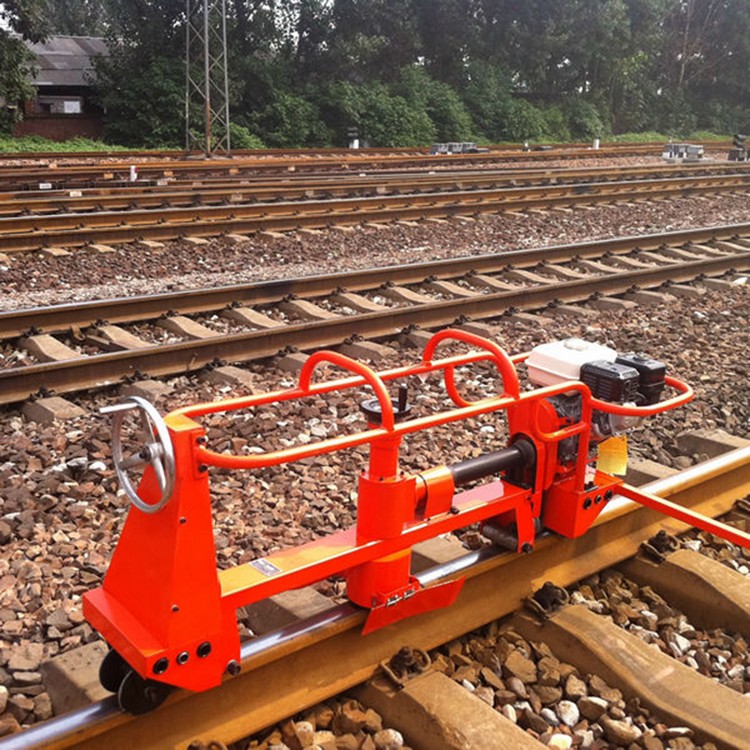

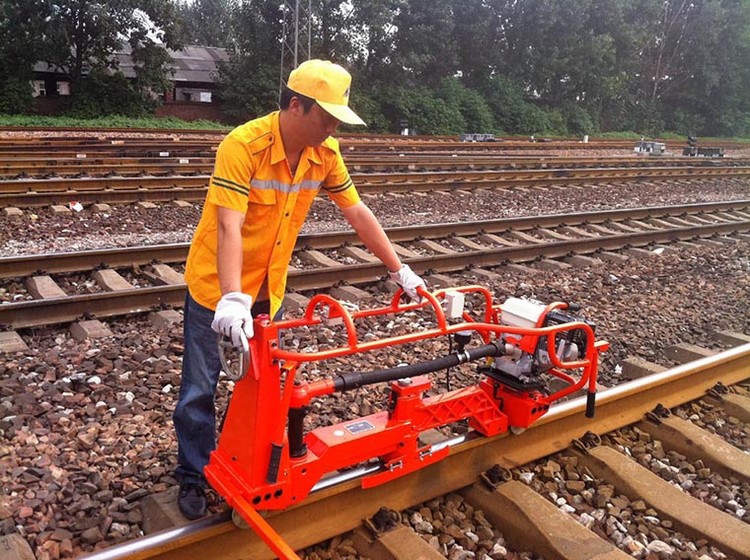

The rail turnout grinding machine is designed to grind the switch rail, the turnout center and the top and side flash of guard rail of the switcher, as well as the rail flash of cross crossover and standard track.
The rail turnout grinding machine is designed to grind the switch rail, the turnout center and the top and side flash of guard rail of the switcher, as well as the rail flash of cross crossover and standard track.The combination of two vertical moving trolleys of ncm-4.0 internal combustion switch grinder can grind in all directions, and the operation is easy and flexible.The grinding device of the turnout grinder can tilt 30 ° from the vertical direction to the side, and adjust the grinding wheel position along the vertical and horizontal directions.So the grinding device can work in the narrow space between rails.
Engine power | 4.0/4.8kw 3600r.p.m |
grinding head | bowl wheel Φ 254mm thickness 35mm Speed 4100r.p.m |
Grinding movement | tilt 30 ° from vertical direction to any side |
vertical stroke | 170mm, 75mm lower than rail head |
overall dimension | 2920 * 850 *1150mm |
mass | 90kg |
