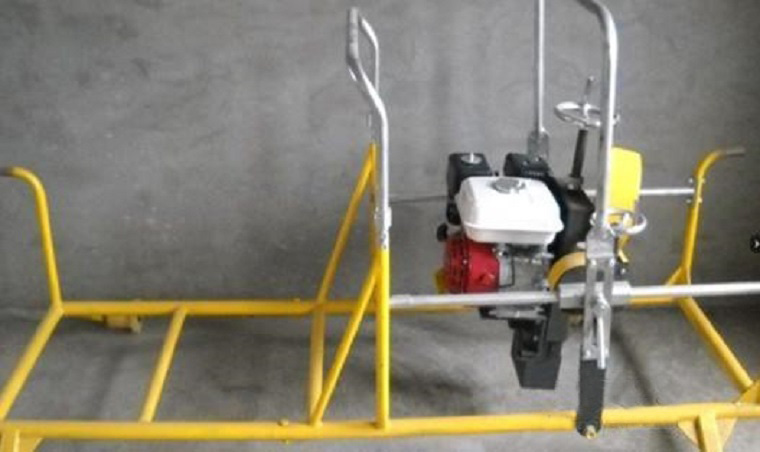

NCM-4 turnout grinding machine can be polished in all directions by the combination of two mutually vertical moving trolleys, and the operation is easy and flexible.
NCM-4 turnout grinding machine can be polished in all directions by the combination of two mutually vertical moving trolleys, and the operation is easy and flexible.
NCM-4 switch grinder is designed to grind the switch rail, switch center, top and side flash of guard rail of switch switch, and can also Polish rail flash of cross crossover and standard track.The grinding device of ncm-4.0 turnout grinder can tilt 30 ° from the vertical direction to the side, and adjust the grinding wheel position along the vertical and horizontal directions.So the grinding device can work very well in the narrow space between rails.
Motivation | Gasoline engine 4.0kw, 3600r / min |
Wheel speed | 4100r/min |
Adjustment range of grinding head inclination angle | ±30° |
Vertical travel of grinding head | l70mm |
Grinding wheel specification | Φ254*Φ30*35mm |
Dimensions | 2920*850*1150mm |
Total weight | 90kg |
