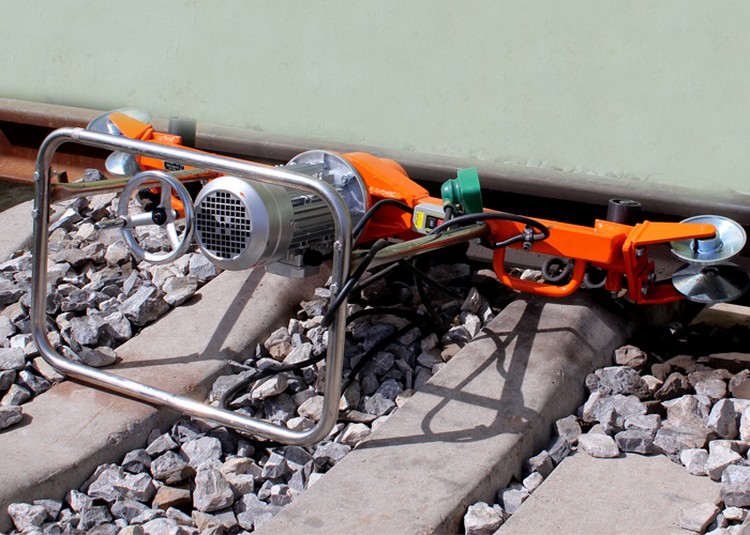

The rail grinder has the advantages of simple structure, small volume, light weight, easy to use, fast up and down track, insulation of running wheel, safety and reliability, and it is suitable for grinding rail plane, side, arc surface and various angles
The rail grinder has the advantages of simple structure, small volume, light weight, easy to use, fast up and down track, insulation of running wheel, safety and reliability, and it is suitable for grinding rail plane, side, arc surface and various angles.It is also suitable for rail welding joint and various switch rail and turnout grinding.This machine uses (motor) internal combustion engine as power source, which is suitable for field operation without power supply.
1.Motor | |
power | 1.5kw |
revolution | 3000r / min |
2. External dimension | 1000* 535* 500 mm |
3. Grinding wheel size | Φ 200 * Φ 32 *25mm |
4.1 Vertical stroke | 0-150 mm |
4.2 transverse stroke | 0-50 mm |
5. Machine weight | ≤ 42 kg |
6. Suitable for various rail types | 18-43-75 |
