1.Check whether the fuel and oil quantity of gasoline engine is sufficient. If not, add fuel and oil first.Specific methods refer to the gasoline engine manual.
1. Check whether the fuel and oil quantity of gasoline engine is sufficient. If not, add fuel and oil first.Specific methods refer to the gasoline engine manual.

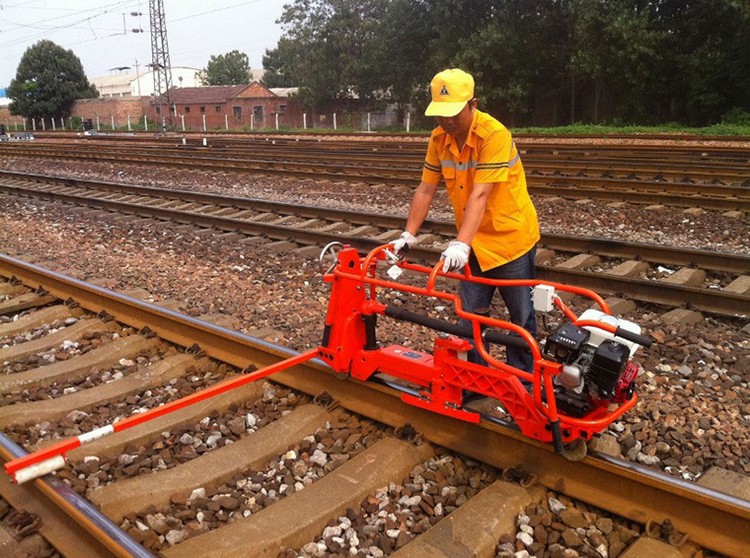

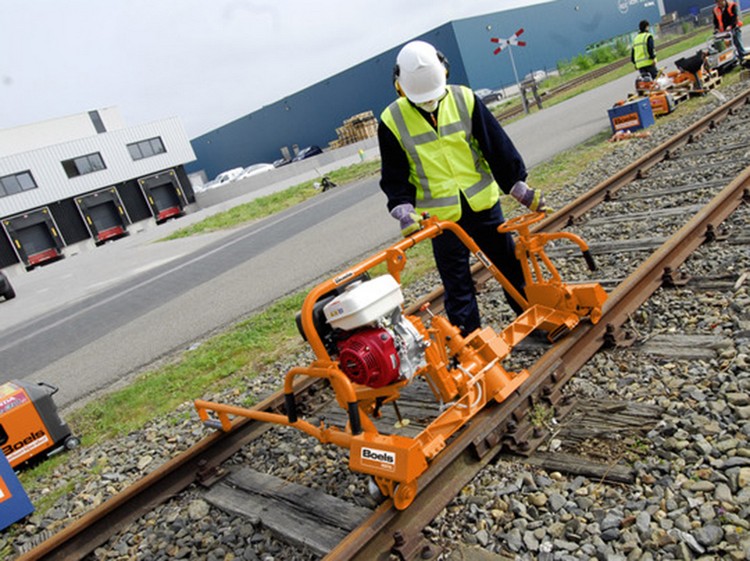

2. Before operation, first rotate the feed hand wheel to the top to make the grinding wheel away from the rail surface, then support the auxiliary support frame, start gasoline engine 4, idle for 30 seconds, and check whether the transmission part is flexible, whether there is abnormal noise, and whether the thread connection is loose.
3. The rail grinding machine is operated by one or two people, one hand holding the shape like hand wheel and the other supporting the shape like frame.4. When grinding, operators must wear appropriate protective equipment: glasses, gloves, etc.5. If the grinding spark falls or approaches inflammables, protective measures should be taken to avoid fire.
Power | 6.5 HP |
spindle speed | 3200 r/min |
grinding wheel size | ∮ 200 *∮ 32 * 25 mm |
vertical stroke | 0-250mm |
transverse stroke | 1600mm |
rotation angle | 0 ± 45 ℃ |
machine weight | 110kg |
Scope of application | 43-75kg / m rail, plane, side, arc surface, flash and various turnouts |
