22kg Mining Light Steel Rail

Steel Rail is a main part of railway track components. Its function is to guide the locomotive wheels of the vehicle to go forward, bear the huge pressure of the wheel, and is passed on to the sleeper.

Introduction of 22kg Mining Light Steel Rail

Steel Rail is a main part of railway track components. Its function is to guide the locomotive wheels of the vehicle to go forward, bear the huge pressure of the wheel, and is passed on to the sleeper.

Parameter of 22kg Mining Light Steel Rail

Standard:GB11264-89

size

Head(mm)

Height

(mm)

Bottom

(mm)

Web

(mm)

Weight

(kg/m)

Material

(mm)

Length

(mm)

GB6KG

25.4

50.8

50.8

4.76

5.98

Q235B

6-12

GB9KG

32.1

63.5

63.5

5.9

8.94

Q235B

6-12

GB12KG

38.1

69.85

69.85

7.54

12.2

Q235B/55Q

6-12

GB15KG

42.86

79.37

79.37

8.33

15.2

Q235B/55Q

6-12

GB22KG

50.3

93.66

93.66

10.72

22.3

Q235B/55Q

6-12

GB30KG

60.33

107.95

107.95

12.3

30.1

Q235B/55Q

6-12

Standard:YB222-63

8KG

25

65

54

7

8.42

Q235B

6-12

18KG

40

90

80

10

18.06

Q235B/55Q

6-12

24KG

51

107

92

10.9

24.46

Q235B/55Q

6-12

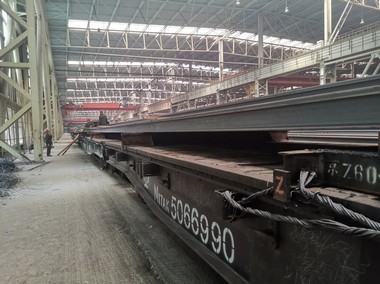

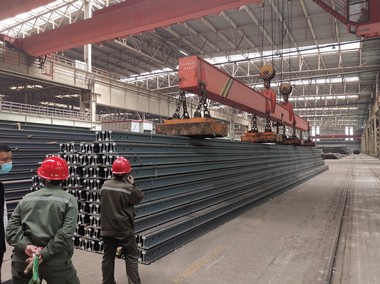

Photos Of 22kg Mining Light Steel Rail

22kg Mining Light Steel Rail
22kg Mining Light Steel Rail
