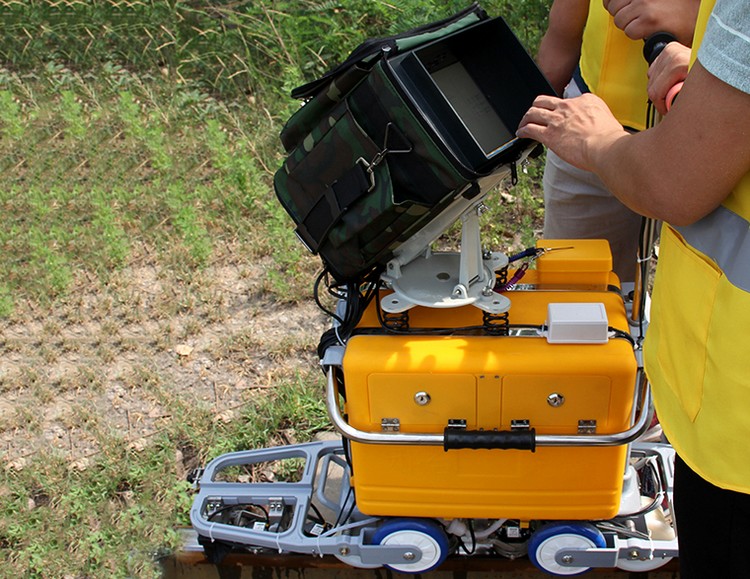

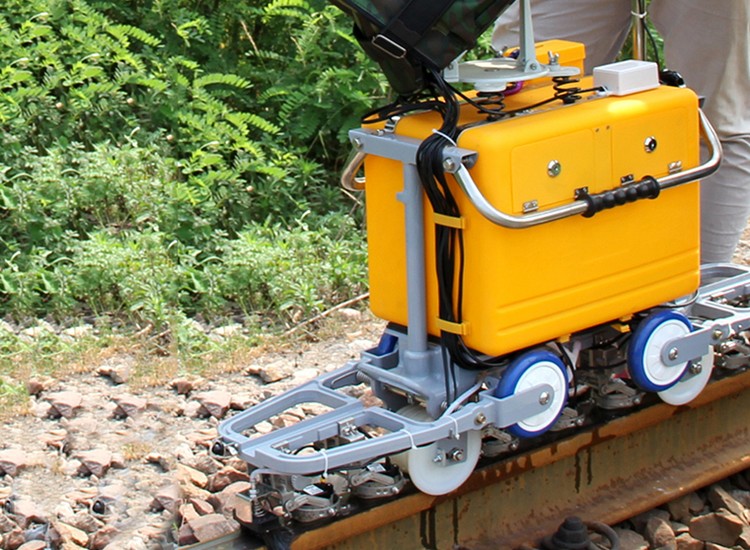

Railway Digital Ultrasonic Rail Flaw Detector the latest digital hand pushed ultrasonic rail testing machine. It has 9 channels and an independent channel for hand held confirmation testing of welds and rail foot.
Railway Digital Ultrasonic Rail Flaw Detector the latest digital hand pushed ultrasonic rail testing machine. It has 9 channels and an independent channel for hand held confirmation testing of welds and rail foot.
9 individual ultrasonic transmit/receive channels for rail testing and an independent hand held channel for defect confirmation, sizing and manual inspection of the weld or rail foot.
3 modes(single A scan, multiple A scan and A+B scan) are available, and all of them have storage and recording function.
GPS Location System is available.
Self-Testing Function on Probes
Save up to 4GB data files.
DAC on all Probes
Detection channel (one of the proofing channels): 8;
Working frequency: 2MHz;
Repeated detection frequency: 400Hz;
Detection range: 0~200mm Suitable for 43kg/m and 50kg/m rails 0～250mm Suitable for 60kg/m and 75kg/m rails
Dynamic range: ≥20dB (small suppression), 2~6dB (large suppression);
Horizontal linearity error: ≤ 2%
Heavy linearity error: ≤15%
Gain control range: 80dB
Attenuator error: no more than 1dB per 12dB
Working voltage: DC18V ~ 22V;
Power consumption: ≤10W;
Working temperature: -400C ~ 500C;
Coupling agent capacity: 20L;
Weight: 28Kg
Overall dimensions: length × height × width = 750 × 800 × 350mm
Instrument host size: length × height × width = 340 × 230 × 150mm
