Rail Flaw Test Ultrasonic Flaw Detector

Introduction of Rail Flaw Test Ultrasonic Flaw Detector

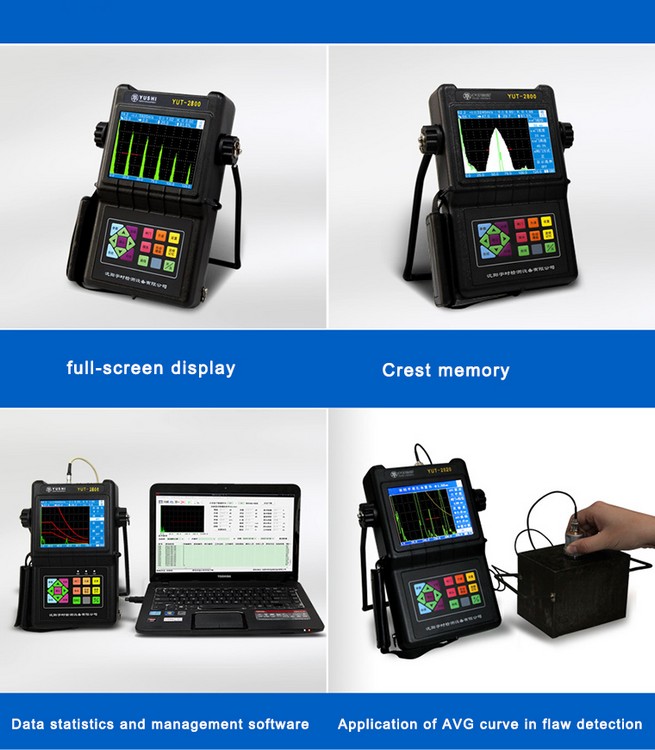

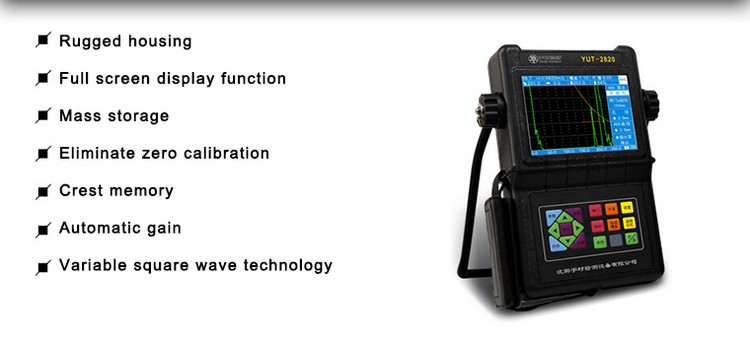

Flaw Detector Full-screen display function: The echo display area covers the entire screen, bringing the largest window experience to workers.

Large-capacity memory: can store up to 1000 data sets, including waveforms, curves, parameters, etc. (including 1000 channels in the traditional sense).

Measurement point: The peak or leading edge of the echo in the gate.

Echo-echo thickness measurement: Zero calibration is eliminated, and the net thickness of the substrate can be directly measured through the coating.

Peak memory: The real-time envelope shows the highest wave of defects. Recording the maximum value of the defect helps to locate the defect accurately and scan quickly. It can also help identify the defect with the help of the envelope waveform.

Automatic gain: automatically adjust the gain to the set amplitude height.

Alarm function: incoming wave / lost wave alarm.

Solid waveform display: increase the visual contrast of the waveform, fast scanning is not easy to miss.

Real-time clock: Automatically records the date and time of the stored waveform.

Display freeze: Capture waveform and sound path data at any time, and move the gate to measure echo parameters after freezing.

Defect location: Real-time display of sound path S, level X, depth Y, wave height H.

Defect quantification: dB difference and SL quantitative value are displayed in real time.

Digital suppression: 0-80%, increasing by 1%, does not affect linearity and gain.

Gates A and B: 2 independent measuring gates to monitor echo amplitude and sound path distance.

DAC curve: perfect DAC curve function, the curve changes with changes in gain, sound path, and displacement.

Working languages: Chinese and English operation interface.

Data communication: It communicates with the computer through RS232 interface to transmit waveforms and data, and realizes management of inspection results on the computer, generation of inspection reports, and printout.

Application of Rail Flaw Test Ultrasonic Flaw Detector

The YUT series ultrasonic flaw detector is a portable industrial non-destructive flaw detector, which can conveniently, quickly, and without damage, accurately detect, locate, evaluate, and diagnose multiple defects (cracks, looseness, pores, inclusions, etc.) . Used in electric power, petrochemical, boiler and pressure vessels, steel structures, military industry, aerospace, railway transportation, automobiles, machinery and other fields.
