Rubber Crossing board is now the world's most advanced products, with strong shock resistance, good insulation properties, wear resistance, many times less compression deformation, strong resistance, resistance to aging, not turning mud, long life and other characteristics. Using times increase from the 150,000 to 450,000, service life 10--15 years, in line with the railway speed and environmental requirements. Use it to increase the transport capacity of the motor vehicles, reducing the maintenance times and avoiding accidents caused by motor vehicle flameout.

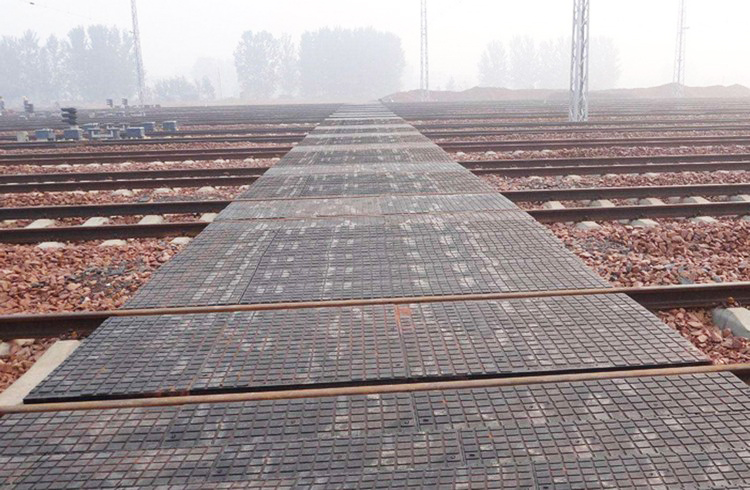

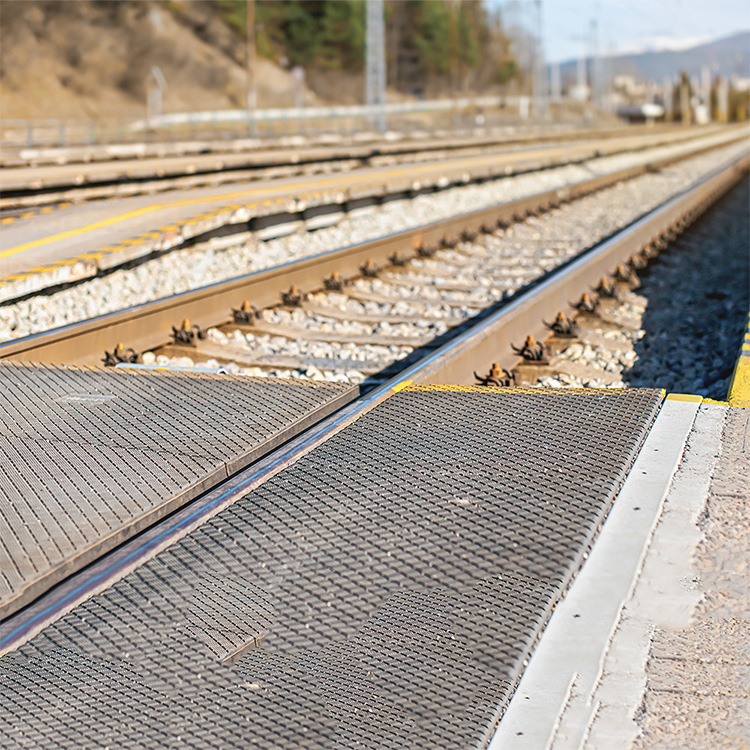

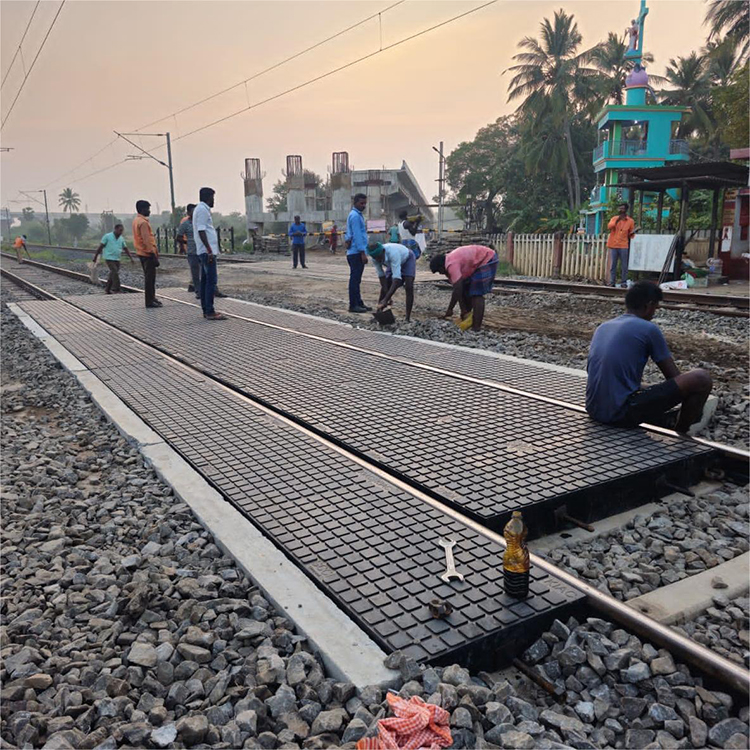

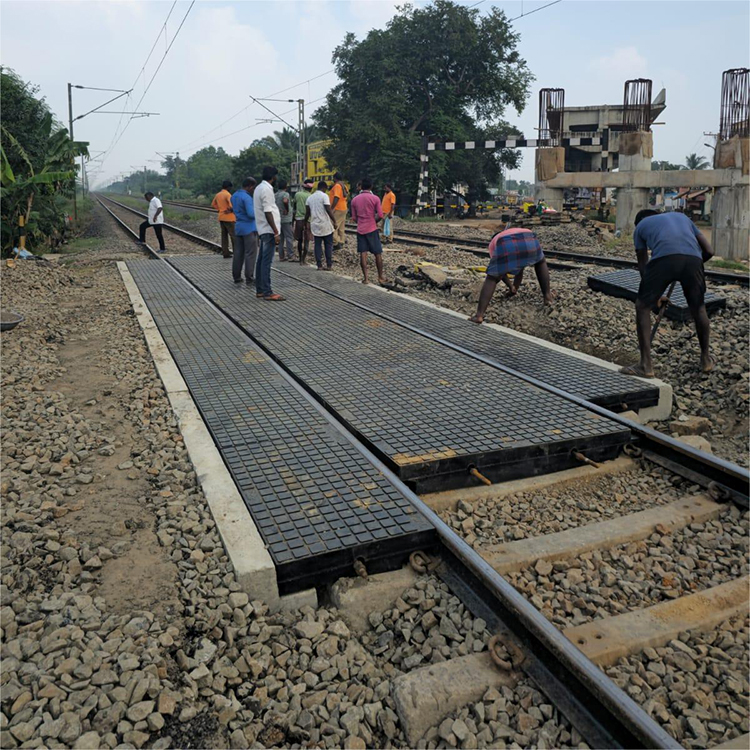

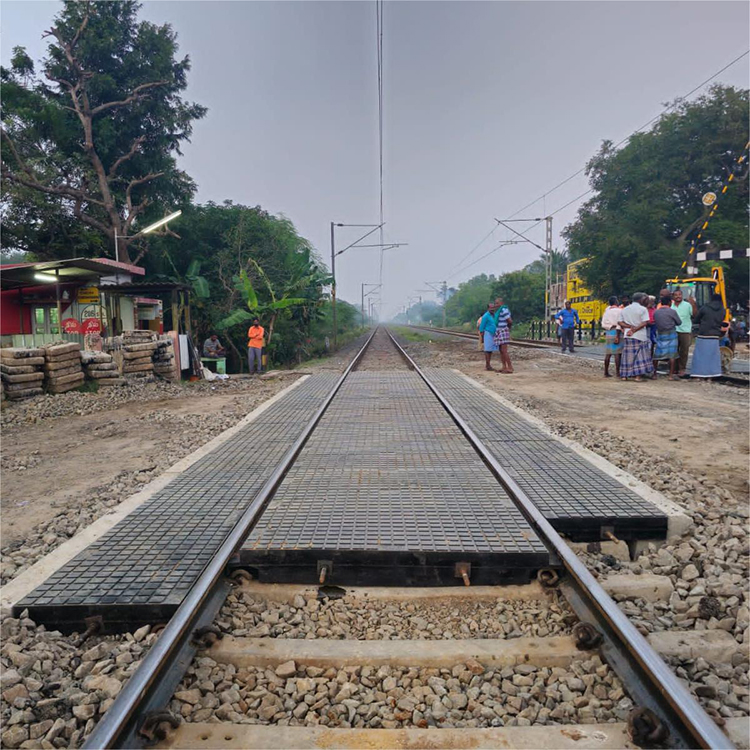

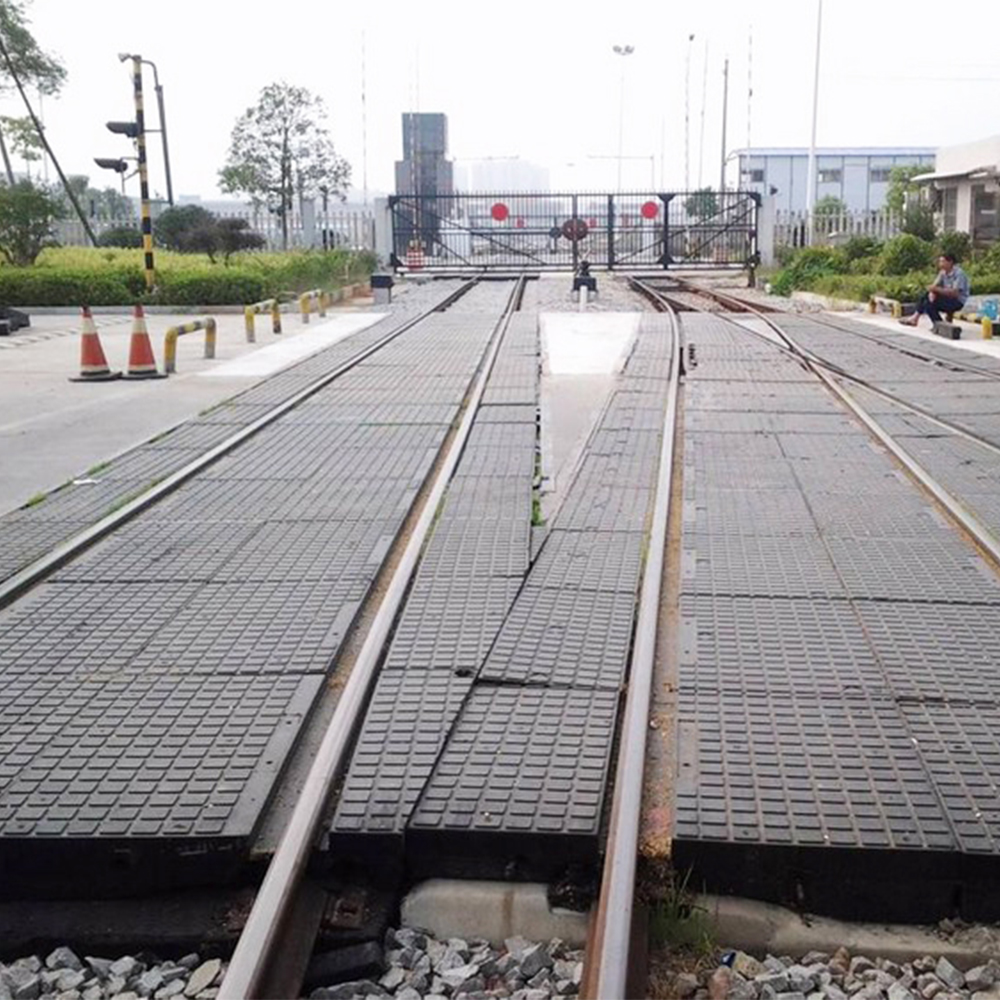

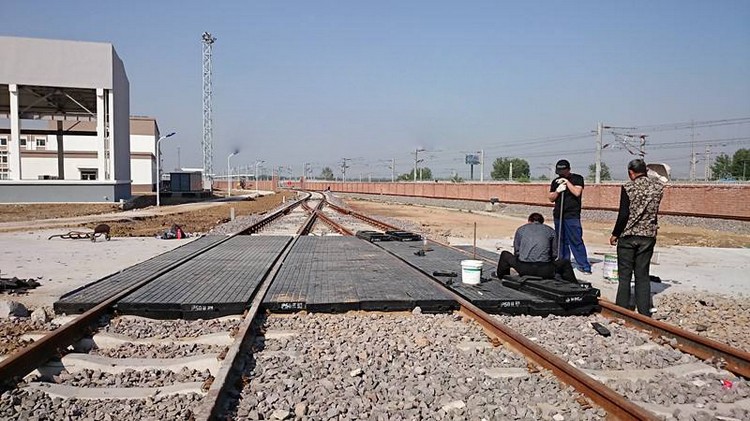

Rubber Crossing board is suitable for railway, highway level crossing, urban light rail ring road level crossing and station platform, station baggage car aisle, yard, depot repair shop, outside the dedicated line, business, mining railway, highway flat crossing
Model | Specification(mm) | Weight(kg) | Installation Position | ||
Length | Width | Height | |||
P60KG-1 | 1650 | 750 | 202 | 250 | In the middle of the rails |
P60KG-2 | 1650 | 490 | 160 | 140 | Outside of the rails |
P50KG-1 | 1100 | 750 | 175 | 200 | In the middle of the rails |
P50KG-2 | 1100 | 480 | 175 | 100 | Outside of the rails |
Item | Unit | Standard | Actual Performance |
Hardness | Shore Degree | 72-82 | 81 |
Working resistance | Ω | ≥10 | 5.2x107 |
Tensile strength | Mpa | ≥12.5 | 18.4 |
Elongation at break | % | ≥250 | 291 |
200% Modulus | Mpa | ≥9.5 | 11.8 |
Permanent compression set | % | ≤30 | 17 |
Tensile strength | Mpa | ≥10 | 14 |
Elongation at break | % | ≥150 | 152 |
