Introduction of p43 Railway Rubber Crossing Board

The p43 railway rubber crossing plate is a special product used for road and railway, plane crossings, and the railway rubber crossing broad is made of rubber as the main raw material, scientific formula, and high-tech production technology. The rubber crossing board meets the requirements of railway speed increase and environmental protection, and it can improve the transportation capacity of motor vehicles.

Characteristics of p43 Railway Rubber Crossing Board

Item
Unit
Standard
  Actual Performance
Hardness
Shore Degree
72-82
                        81
Working resistance
Ω
≥10
                        5.2x107
Tensile strength
Mpa
≥12.5
                        18.4
Elongation at break
%
≥250
                        291
200% Modulus
Mpa
≥9.5
                        11.8
Permanent compression set
%
≤30
                        17
Tensile strength
Mpa
≥10
                        14
Elongation at break
%
≥150
                        152

Model	Specification(mm)			Weight(kg)
	Length	Width	Height
P60KG-1	1650	750	202	250
P60KG-2	1650	490	160	140
P50KG-1	1100	750	175	200
P50KG-2	1100	480	175	100

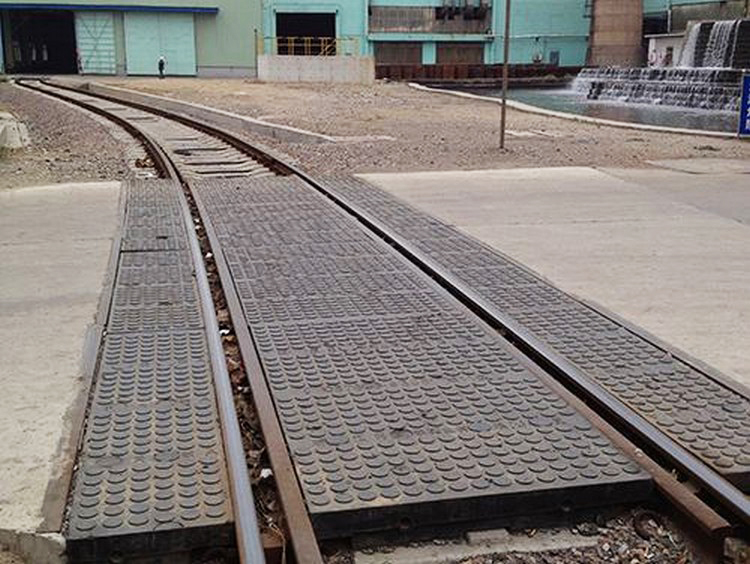

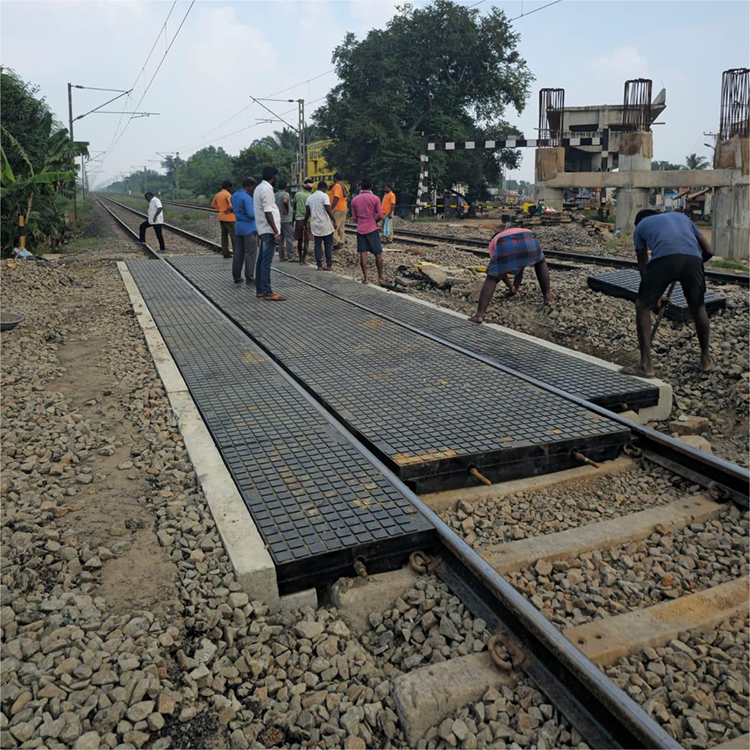

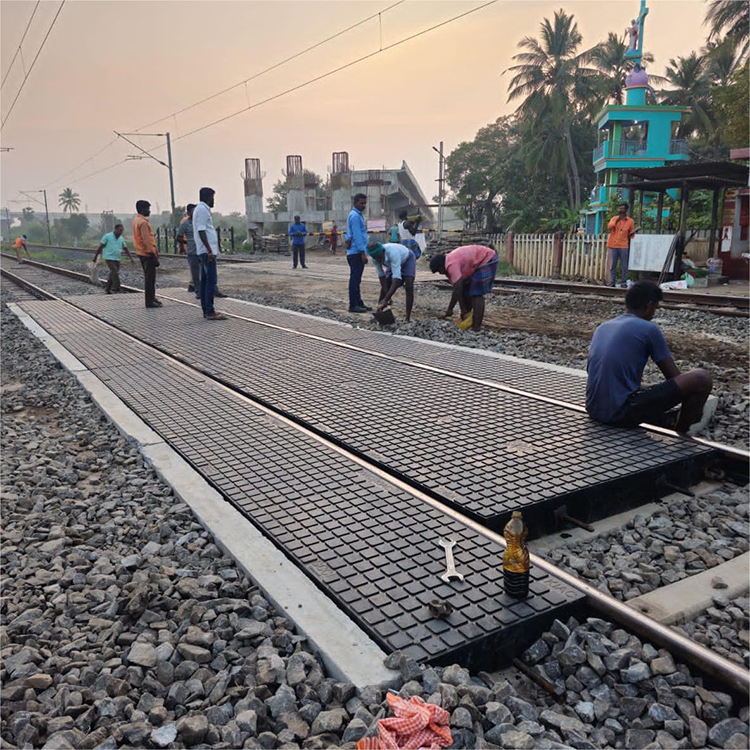

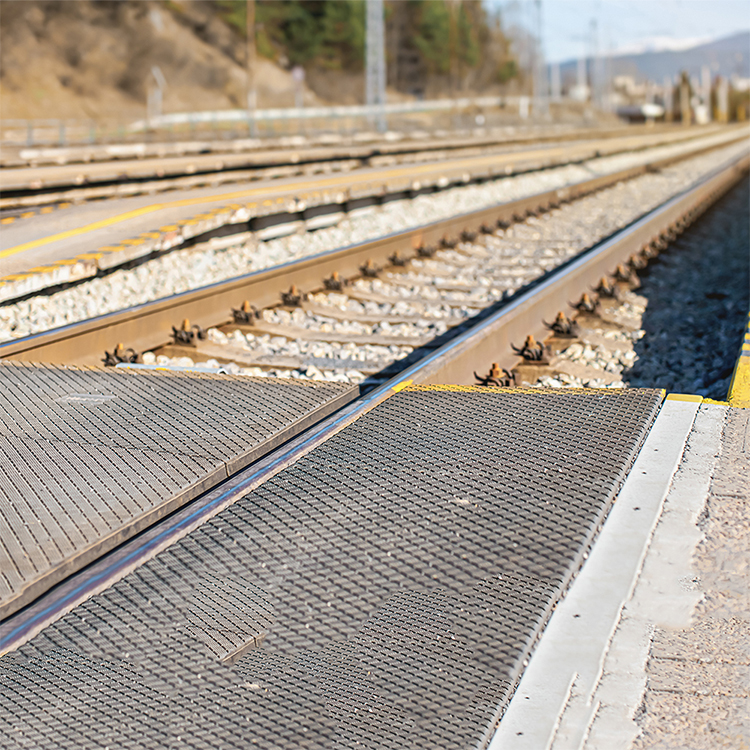

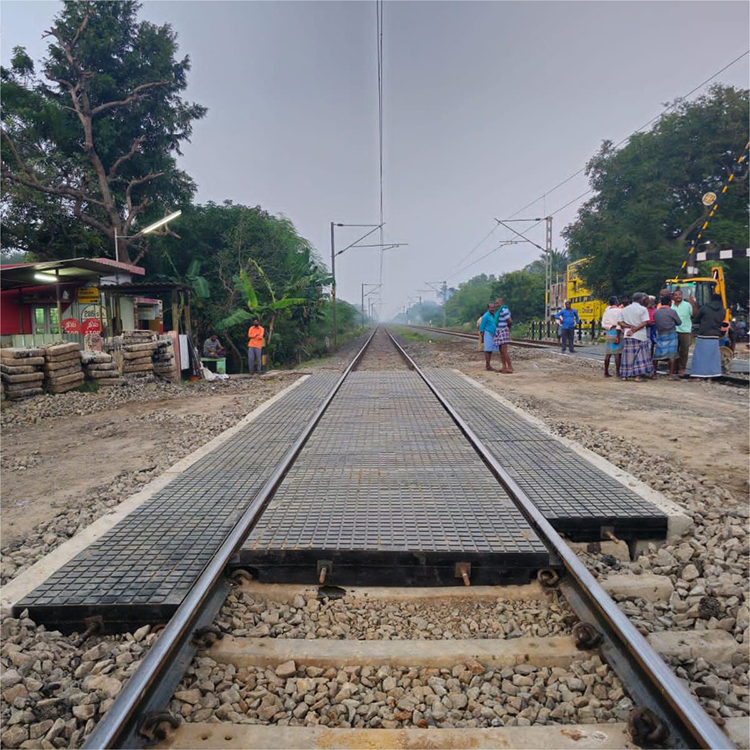

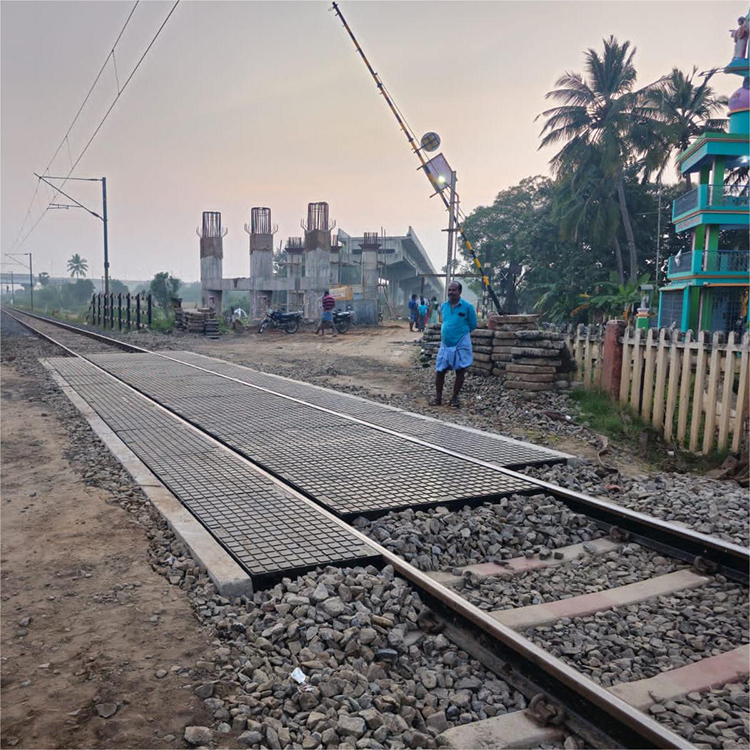

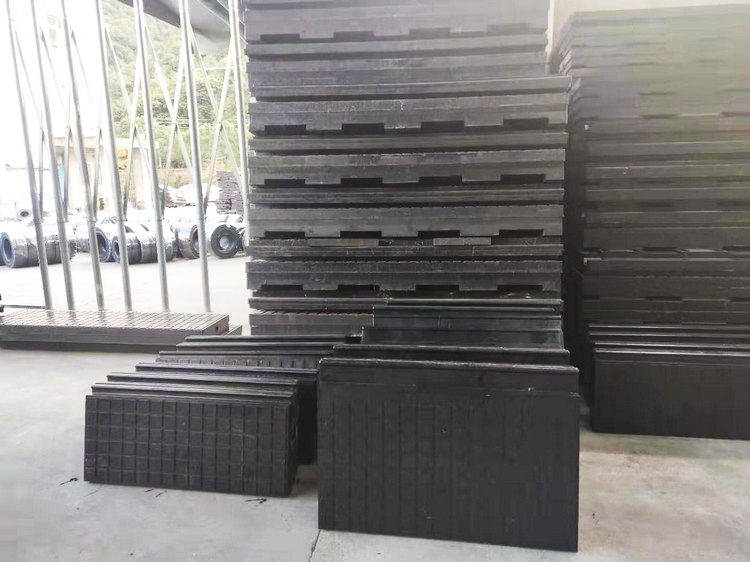

Photos Of Railway Rubber Crossing Board
