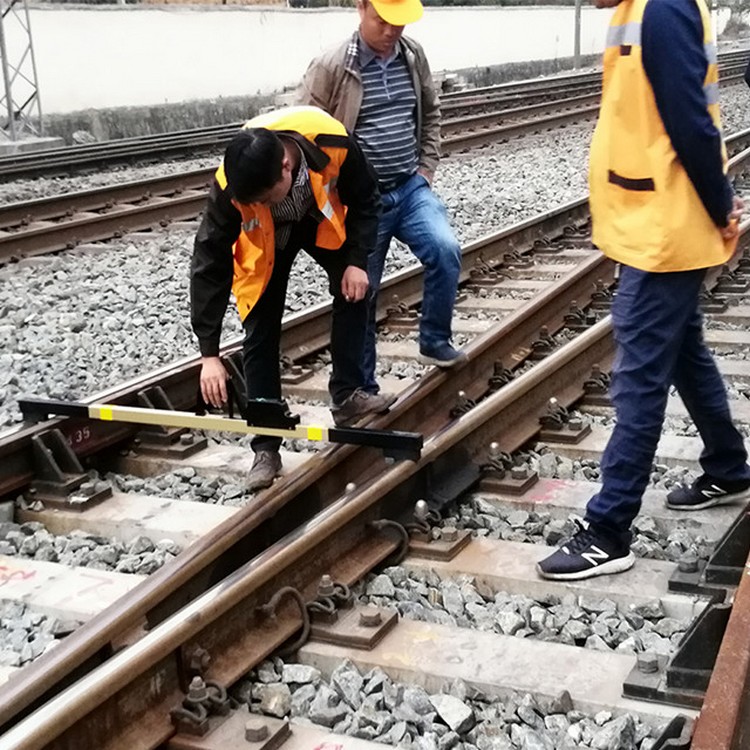

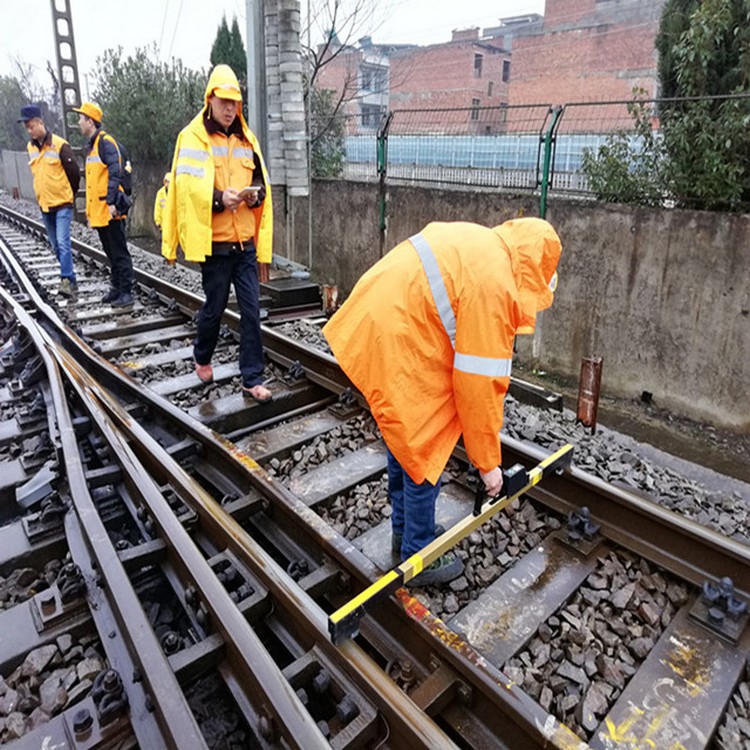

The horizontal (super high), gauge, check interval and guard distance of standard gauge track are detected.
The measuring surface of gauge gauge, universal gauge, universal gauge and electronic digital gauge are manufactured by imported large-scale precision surface grinder at one time to ensure the horizontal accuracy of the measuring surface at both ends.
The design has blister calibration, gauge calibration,
Suitable working environment: -40℃~~+60℃
Model: 600,900,1000, 1067,1435,1520,1676mm
For measuring:
Rail gauge
Check rail gauge
Superelevation
Flange groove
Guard rail gauge
Entry name | 1000 Measuring range | 1067 Measuring range | 1435 Measuring range | 1520 Measuring range | 1676 Measuring range | Maximum permissible error of indication |
gauge | 1020~1030 | 1042~1100 | 1410~1470 | 1545~1555 | 1701~1771 | ±0.25 |
superelevation | -128~+128 | -128~+128 | -150~+150 | -150~+150 | -150~+150 | ——— |
check-rail gauge | 946~966 | 1013~1033 | 1381~1401 | 1466~1146 | 1622~1642 | ±0.30 |
back-to-back distance | 893~923 | 970~990 | 1338~1358 | 1423~1443 | 1579~1599 | ±0.30 |
