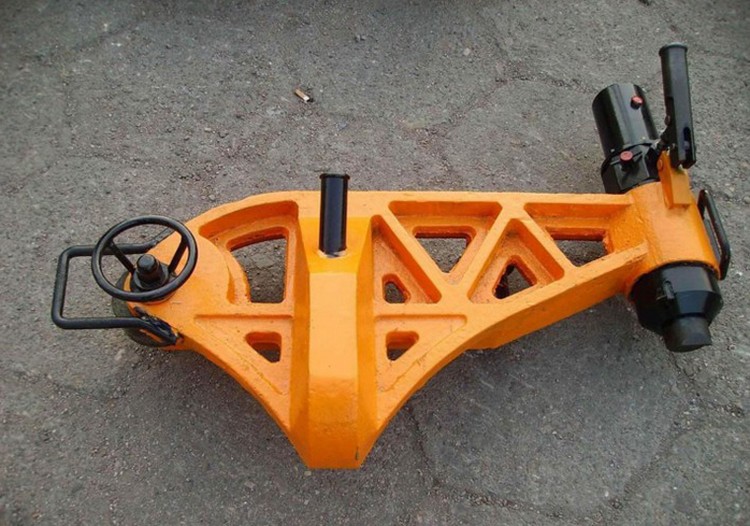

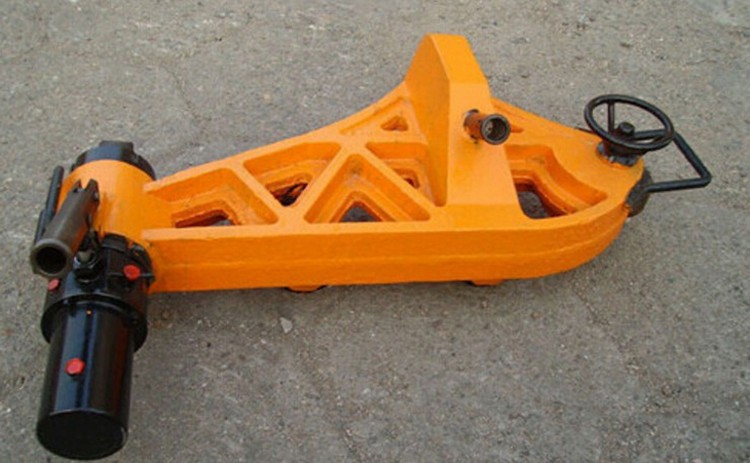

YZG/750II Hydraulic rail straightening device, It’s suitable for crosswise straightening(or bending) 43kg/m-75kg/m rails on railway track.
YZG/750II Hydraulic rail straightening device, It’s suitable for crosswise straightening(or bending) 43kg/m-75kg/m rails on railway track. It adopts special steel and has reliable performance. It can be used to do straightening operation beneath the railway rail to ensure traffic safety; it can be used to do the operation on the railway track rail. It features compact in structure, light in weight, convenient in installation.
Product | Description |
Model | 750Ⅱ Hydraulic rail straightening device |
Dimension | 830×720×350 mm |
Material | Stainless Steel |
Color | Yellow/Orange |
Application | For The Rail System Device Application |
Max.Straightening Force | 750kN |
Working Pressure | 59 MPa |
Working Piston Diameter x Stroke | Φ70×70 |
Weight | 89kg |
