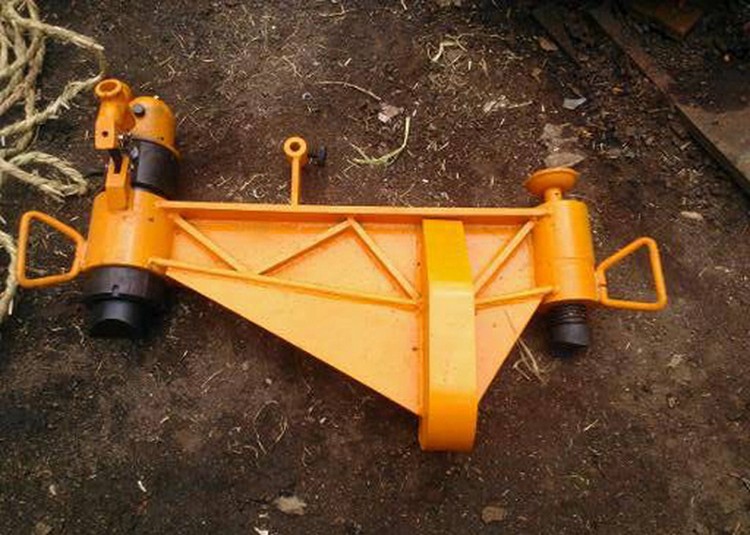

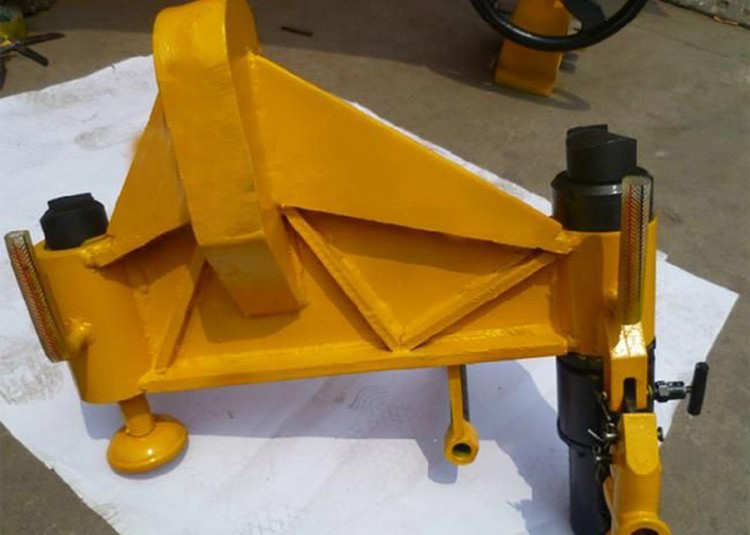

YZG- 530 type hydraulic straight rail device is on a line to 50 kg/m the following various rail type horizontal direction for straightening
YZG- 530 type hydraulic straight rail device is on a line to 50 kg/m the following various rail type horizontal direction for straightening (or bending) manual hydraulic special tool. The machine adopts special steel forging , reliable performance, compact structure, light weight, easy disassembling.
Product | Description |
Model | YZG- 530 type hydraulic rail bender |
Dimension | 830×720×350 mm |
Material | Stainless Steel |
Color | Yellow/Orange |
Application | For The Rail System Device Application |
Max.Straightening Force | 530kN |
Working Pressure | 52MPa |
Working Piston Diameter x Stroke | Φ70×70 |
Weight | 58kg |
