1. Function: Correction of the geometrical dimensions of the line, straightening the shape of the rest of the railway.
2. There are many models of Hydraulic Rail Track Lifting, YQB-400 Hydraulic Rail Track Lifting is one of the main models.
The main purpose is to carry out maintenance and repair operations on the switch and the line. Applicable to: standard gauge track and line starting and dialing operations of 43kg/m, 50kg/m, 60kg/m and other rail types.

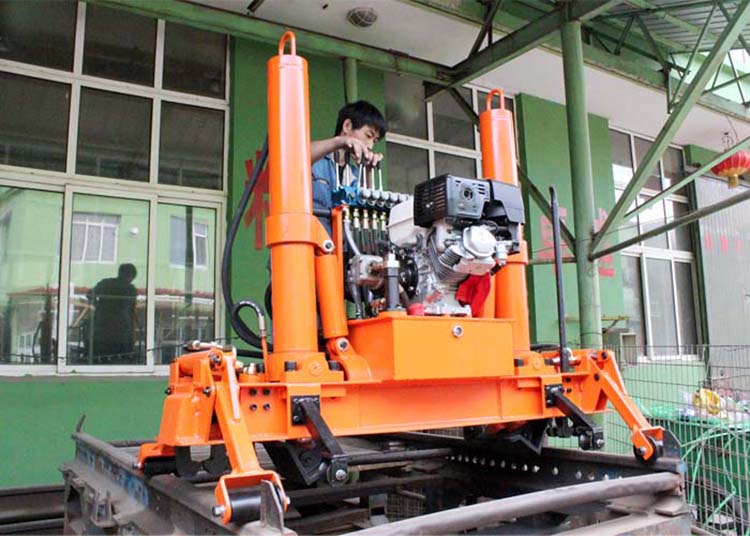

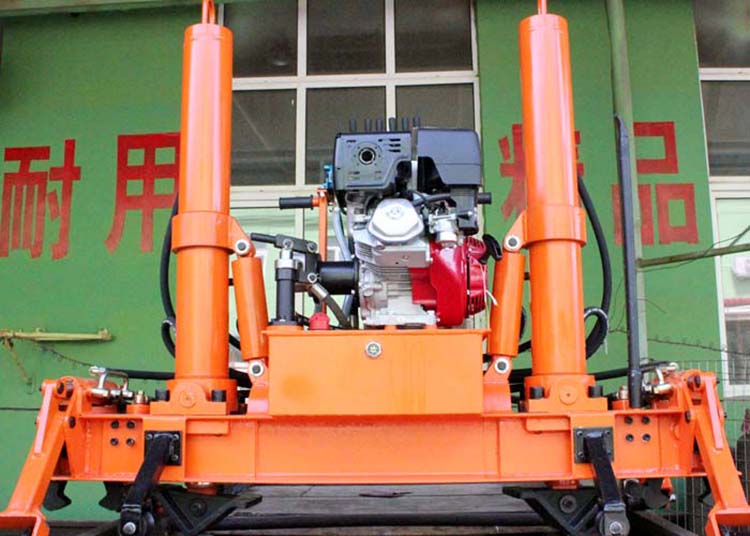

The machine integrates the functions of starting and dialing, and adopts the Honda gasoline engine with small vibration and light weight as the power. It has the characteristics of simple operation, single (double) side starting, single side lane, etc., and is used together with the rotating lower frame. . It can quickly and reliably move up and down, and does not invade the limit after the next rotation.
Product | Description |
Model | YQBJ-300*200II hydraulic Rail lifting and lining machine |
rated rail lifting force: | 150kN×2 |
up-down cylinder stroke: | 800mm |
rated rail lining force: | 200kN |
lining amount: | ≥150mm/time |
system working pressure: | 16MPa |
hand pump operating force: | 350N |
engine power: | 9.5kW |
overall size: | 1750×850×1510 |
machine weight: | 588kg |
rail gauge: | 1435mm |
