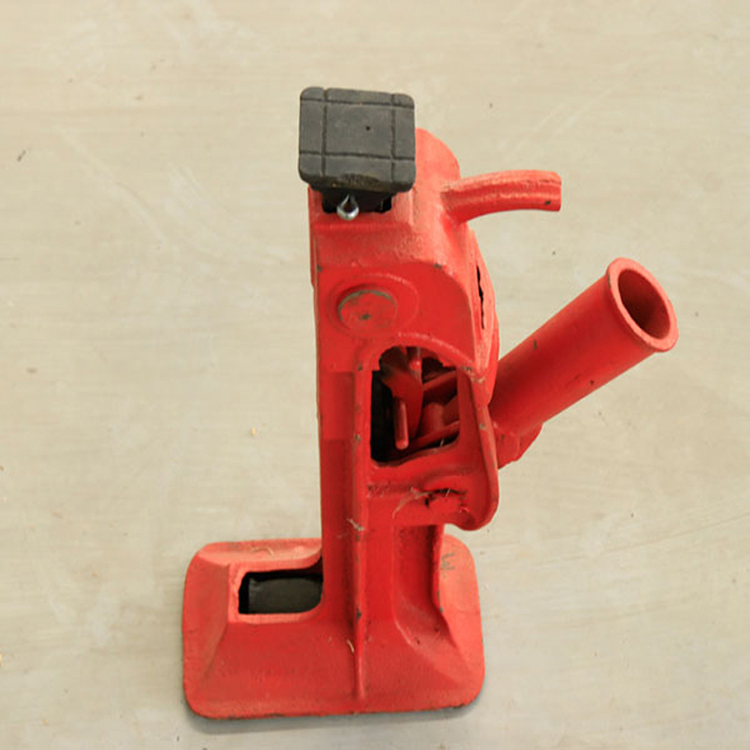

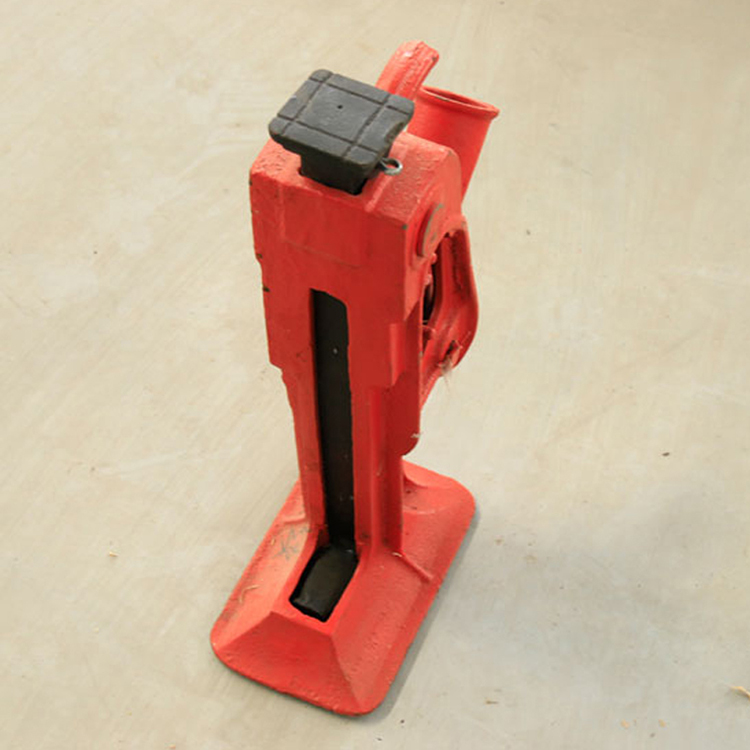

The hydraulic track lifter consists of a base hook, a handle bar, a pawl, a jack, a rack, and a quick drop wheel.
The hydraulic track lifter consists of a base hook, a handle bar, a pawl, a jack, a rack, and a quick drop wheel. It is characterized in that its hook and rack form a sliding fit, and the handle bar is hinged with the hook, and the pawl One end is fixed on the handle bar, the other end is engaged with the rack, the jack is fixed on the lifting hook, and the rack is fixedly connected with the base. It overcomes the shortcomings of the original track starting machine, such as large size, heavy weight, and overall super high penetration limit. It consists of a base, a lifting hook, a handle press, a pawl, a jack, and a quick drop wheel. Compared with the original technology, it has the following advantages: small size, light weight, easy to carry, and the entire operation process is in a state that can ensure driving safety.
Model | QD5 | QD10 | QD15 | QD20 |
Lifting amount | 5T | 10T | 15T | 20T |
Hook lift | 2.5T | 5T | 7.5T | 10T |
Lifting degree | 160MM | 180MM | 280MM | 350MM |
Top height | 345MM | 410MM | 580MM | 680MM |
Foot hook height | 43MM | 45MM | 60MM | 75MM |
