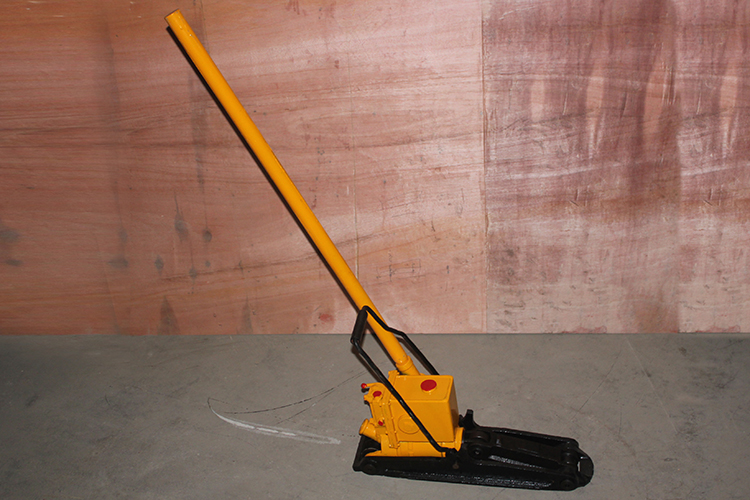

Hydraulic rail lifting & lining device, It’s suitable for lifting and lining various rail track.
Hydraulic rail lifting & lining device, It’s suitable for lifting and lining various rail track. It features novel structure, portable operation, safety and reliability, invading limitation impossibility, high working efficiency, light weight. It’s also suitable for switch lifting and lining operation. It’s a necessary tool in railway track maintenance operation.
Model | YQB-200*135 | YQB-250*150 |
Dimension | 540×180×240mm | 540×180×240mm |
Rated Lifitng Force | 200kn | 250kn |
Rated Lining force | 135kn | 150kn |
Max. lifting stoke | 120mm | 128mm |
Max. lining stoke | 80mm | 87mm |
Rated pressure | 55MPa | 55MPa |
No-load efficiency | 6mm | 6mm |
Handle operating moment | 500kn | 500kn |
Weight | 24kg | 26kg |
