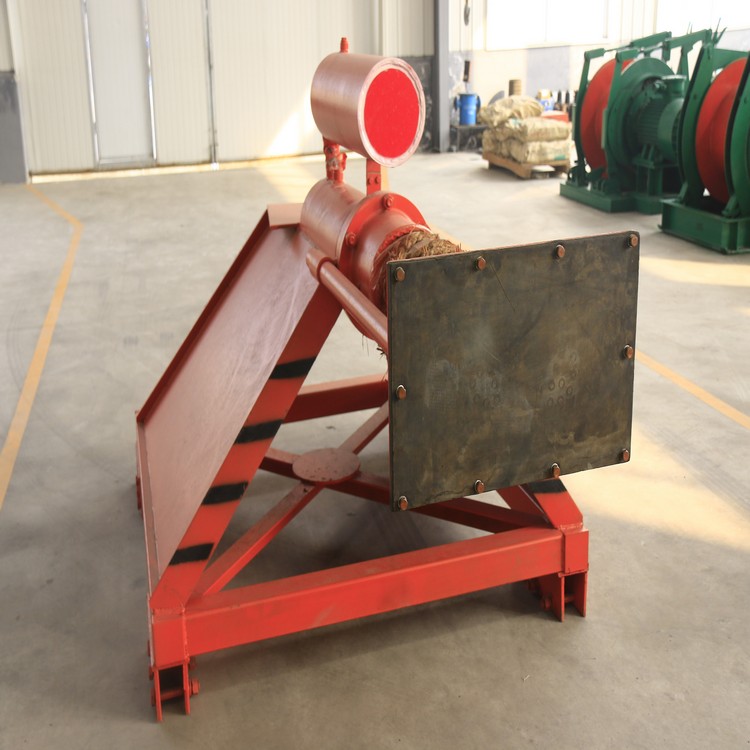

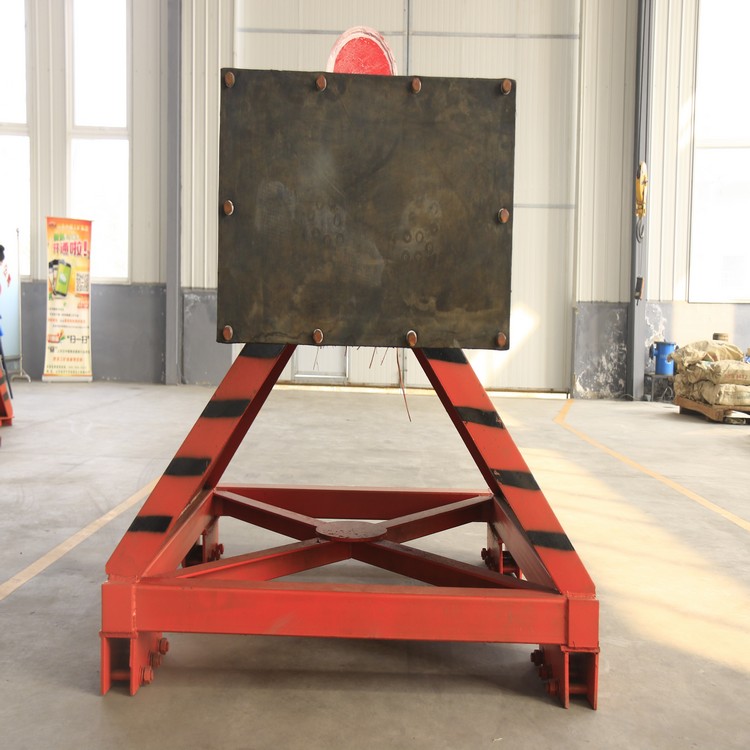

WCD series crescent buffer station is mainly used for 43kg, 50kg, 60kg rail type.
WCD series crescent buffer station is mainly used for 43kg, 50kg, 60kg rail type. Because the vehicle stays close to the crescent buffer station in the garage, and the stock has a small slope or no gradient, the vehicle has a low slip speed, so the design is The crescent buffer station is installed at the line terminal. If the vehicle slips away and crashes into the crescent buffer station, the escaping vehicle will be forcibly stopped.
The crescent buffer station consists of 45 steels and 2 semi-solid castings. The two halves of the crucible are fastened to the rails by ∮24 bolts. When installed, the crescent bolt bolt holes drilled on the rails are fastened with M24 high-strength bolts. Rails.
The crescent buffer station is a low-speed buffer station. When there is no buffer device, it is a rigid contact when the car is blocked, and the vehicle brake function is absorbed by the elastic deformation of the buffer station and the rail to block the vehicle.
