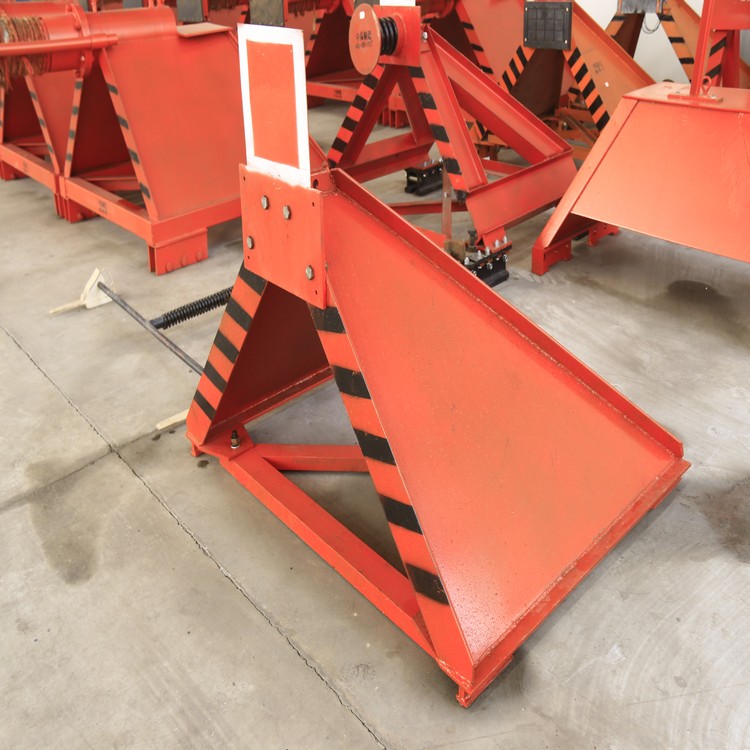

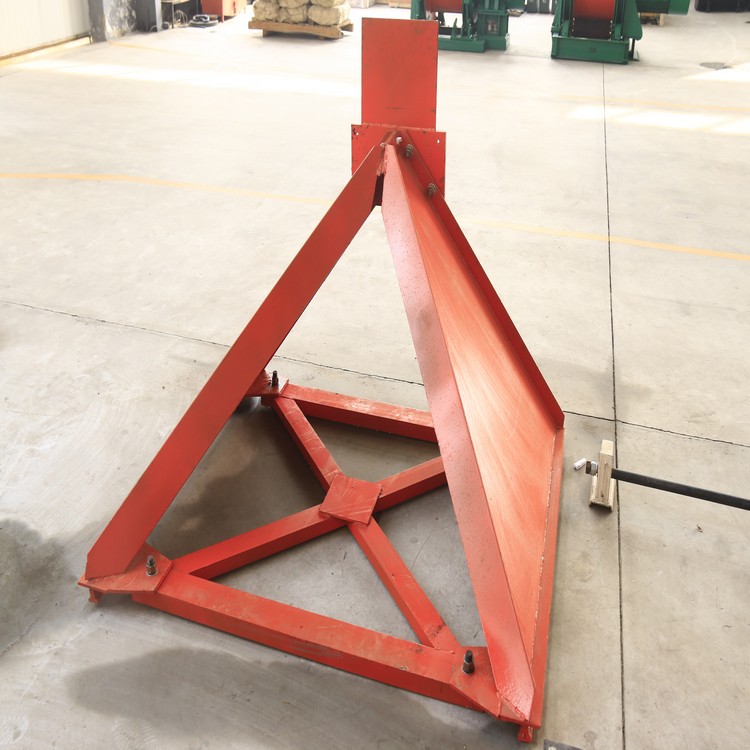

The CDG-K fixed baffle buffer station is mainly used for the safety protection equipment of the anti-collision vehicle at the end of the railway line.
The CDG-K fixed baffle buffer station is mainly used for the safety protection equipment of the anti-collision vehicle at the end of the railway line. The buffer head is in contact with the coupler through the buffer rubber plate, and it is subjected to the impact of the coupler of the slewing vehicle, forcing the slewing vehicle to stop. The products that are designed to meet the specific requirements put forward by the use unit in light of the actual situation of the user. It has short occupied lines, simple structure, low cost, and easy maintenance. Can be used in vehicles with smaller groupings and low impact speeds.
1, allow the vehicle maximum impact speed:
According to user needs, 3, 5, 7km/h total 3 grades can be provided.
2, the height of the buffer head from the rail surface:
Standard rail vehicle: 850mm
Metro and Light Rail Vehicles: 500mm, 660mm, 678mm, 720 mm
Other vehicles are provided with data by users and are specially designed according to actual conditions.
3, buffer head geometry and size:
The standard vehicle is a flat type, and the metro, light rail and other vehicles are matched with the size and shape of the coupler provided by the user.
