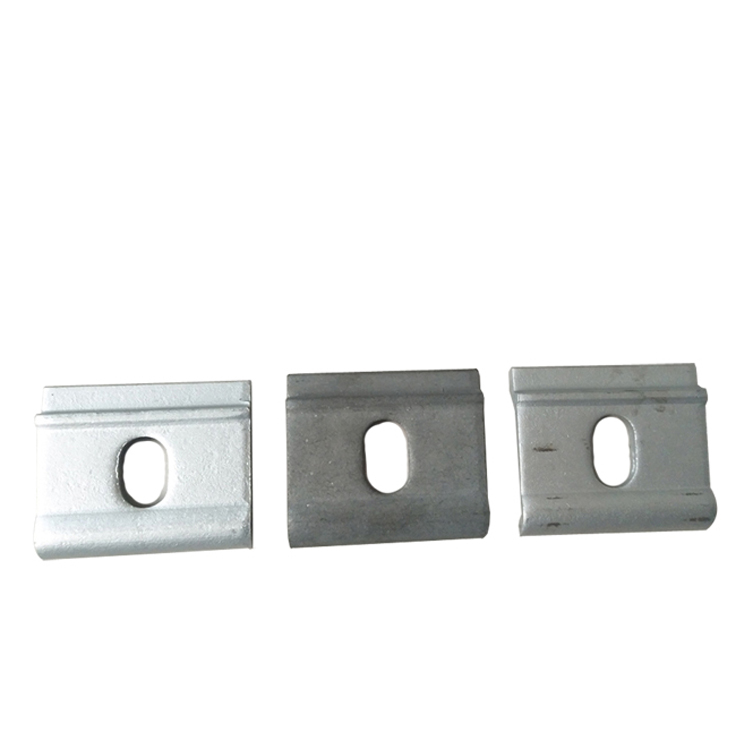

Railway Parts Stainless Steel Baffle Plate

Introduction of Railway Parts Stainless Steel Baffle Plate

There are many types of railway accessories, including gauge baffles. It is also because there are a lot of railway accessories, so many people do not understand the various railway accessories. In order to let everyone know more about the gauge baffle, our company will explain the characteristics and performance of the gauge baffle. In fact, the gauge baffle is to adjust the gauge distance, transmit the horizontal horizontal thrust of the rail, and maintain the standard gauge. The gauge baffle is made of railway hot-rolled gauge baffle steel and is made of Q235-A steel. The surface is flat without cracks. The burr protrudes no more than 1 mm. Place the four corners on the plane and it should be smooth without curling.

     1. The gauge baffle is suitable for the standard gauge railway and the radius R is larger than 300m. The 50, 60kg/m rail and prestressed concrete pillow, prestressed concrete concrete pillow and straight track integral track bed are connected on the line;

     2. When installing the gauge baffle, the straight section and the curve R are larger than 650M, the nut torque is controlled at 80-120N.m, and the radius torque is less than 650m, the nut torque is controlled at 120-150N.m;

     3, by padding into the elevation of the top of the rail, the height adjustment is 10mm;
