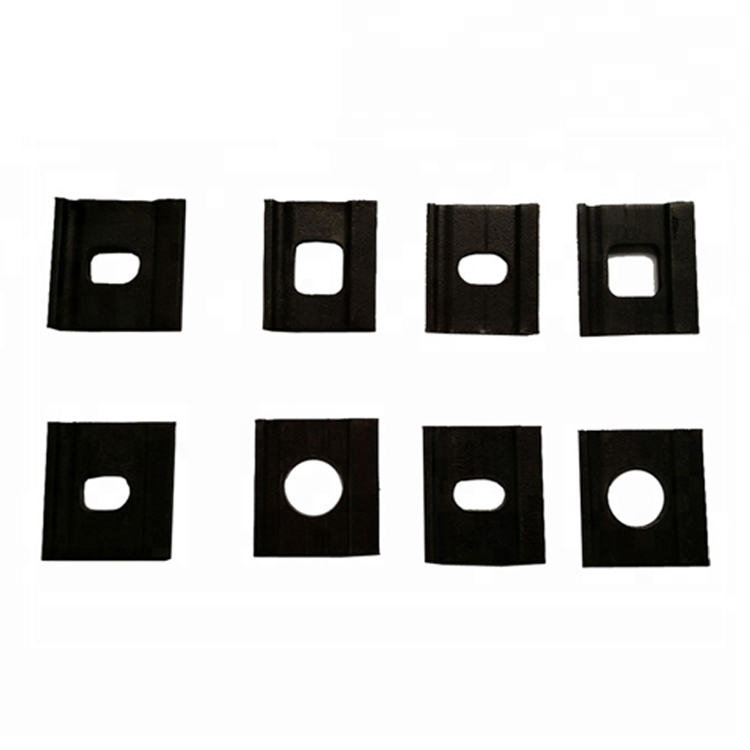

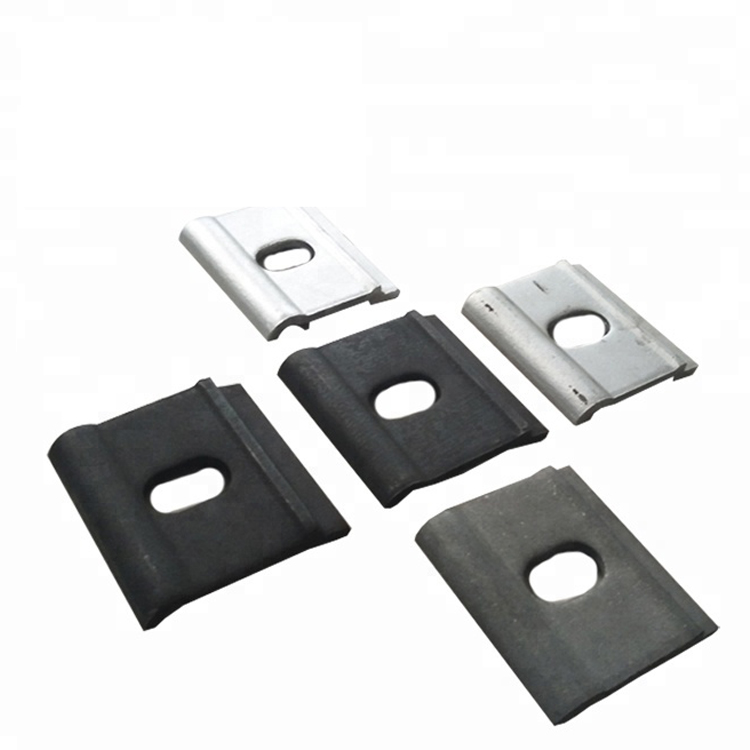

Rail Clamp are used not only to support the rails, but also to fix the entire rail fastening systems. Railway Gauge Baffle always works together with anchor bolts or spikes by sustaining the load of a rail track and also transferring part of the load to the tie sleepers,
Rail Clamp are used not only to support the rails, but also to fix the entire rail fastening systems. Railway Gauge Baffle always works together with anchor bolts or spikes by sustaining the load of a rail track and also transferring part of the load to the tie sleepers, with a flat smooth resting surface to guarantee the vertical alignment and hold the rail in correct gauge for a rail line system.
China Coal factory Rail Baffle plate had passed the review of China Railway Product Certification Center and CRCC certificate,which is use to ensure the stability quality for automatic furnace tempering .
Chemical composition: | C :3.70~4.00% | Mechanical properties: | Tensile strength : σb (MPa):≥450 |
Si:2.15~2.93% | Conditional yield strength :σ0.2 (MPa):≥310 | ||
Mn:0.46~0.66% | elongation :δ (%):≥10 | ||
S :0.010~0.016% | hardness :160~210HB | ||
P :0.027~0.035% | |||
Mg:0.027~0.050% | |||
Re:0.0260.043% | |||
Carbon equivalent : 4.3~4.6 |
