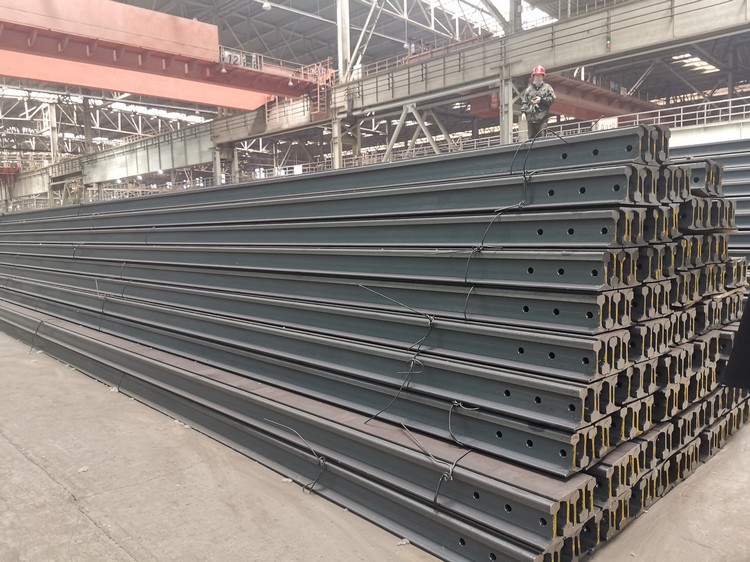

Steel rail is mainly used in railway and underground mine, there are three kinds of steel rail, light rail, heavy rail and crane rail.
Steel rail is mainly used in railway and underground mine, there are three kinds of steel rail, light rail, heavy rail and crane rail.
Size | Dimension(mm) | Weight（kg/m) | Material (mm) | Length (m) | |||
Head (mm) | Height（mm) | Bottom (mm) | Web (mm) | ||||
15KG | 41.28 | 76.2 | 76.2 | 7.54 | 14.905 | 700 | 9 |
22KG | 50.01 | 95.25 | 96.25 | 9.92 | 22.542 | 700 | 9 |
30KG | 57.15 | 109.54 | 109.54 | 11.5 | 30.25 | 900A | 9 |
40KG | 63.5 | 127 | 127 | 14 | 40.31 | 900A | 9~25 |
48KG | 68 | 150 | 127 | 15 | 47.6 | 900A | 9~25 |
57KG | 71.2 | 165 | 140 | 16 | 57.4 | 900A | 9~25 |
