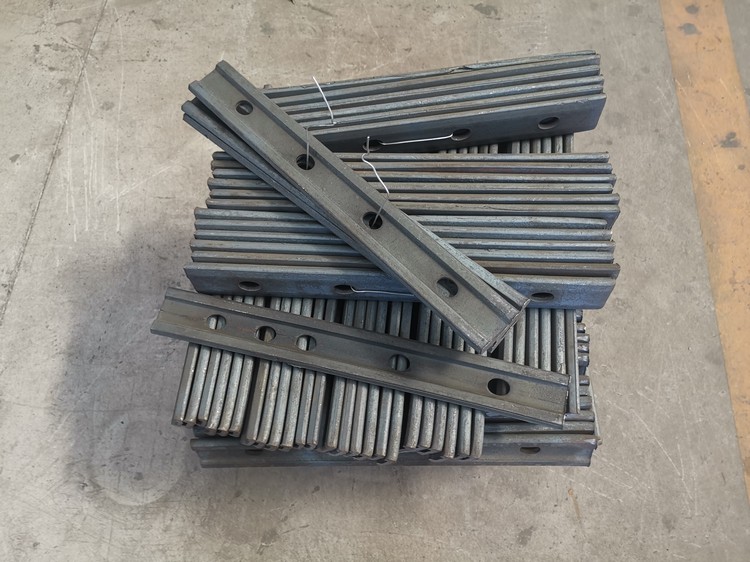

Railway fish plate/Railway Joint splint is used to joint/connect two pieces steel rails, such as light steel rail and heavy steel rail.
There are two kinds of fish plates, 4 holes and 6 holes. 4 holes fish plate is used to connect light steel rail,6 holes fish plate is used to connect heavy steel rail.
Specification | Materials | Standard of Products | Theory Weight (kg/set) | Length of Dimension (cm) | Packed in bundle with iron wire (set) |
8kg | Q235B | GB11265-89 | 0.8 +0.8 =1.6 | | 50 |
| | | 1+1=2 | | |
12kg | | GB11265-89 | 1.1+1.1=2.2 | 45.5 | 50 |
| | | 2.6-3.0 | | |
15-18kg | | GB11265-89 | 3.6-4.0 | 53.54 | 25 |
| | | 4.6-5.0 | | |
| | | 5.6-6.0 | | |
22-24kg | | GB11265-89 | 6.6-7.0 | 61.73 | 20 |
| | | 7.6-8.0 | | |
| | | 8.4-9.0 | | |
30kg | | GB11265-89 | 14.4-15.0 | 71.48 | 10 |
| | | 16.4-17.0 | | |
43kg | | GB185-63 | 57.0-58.0 | 79 | 1 |
