Rail stretcher is suitable for stress release of CWR and laying of long rail, and also suitable for thermit welding of rail on track.
The rail in zero stress state is forced to be stretched to the length when the rail temperature is locked, and then re locked or thermit welded rail is carried out.

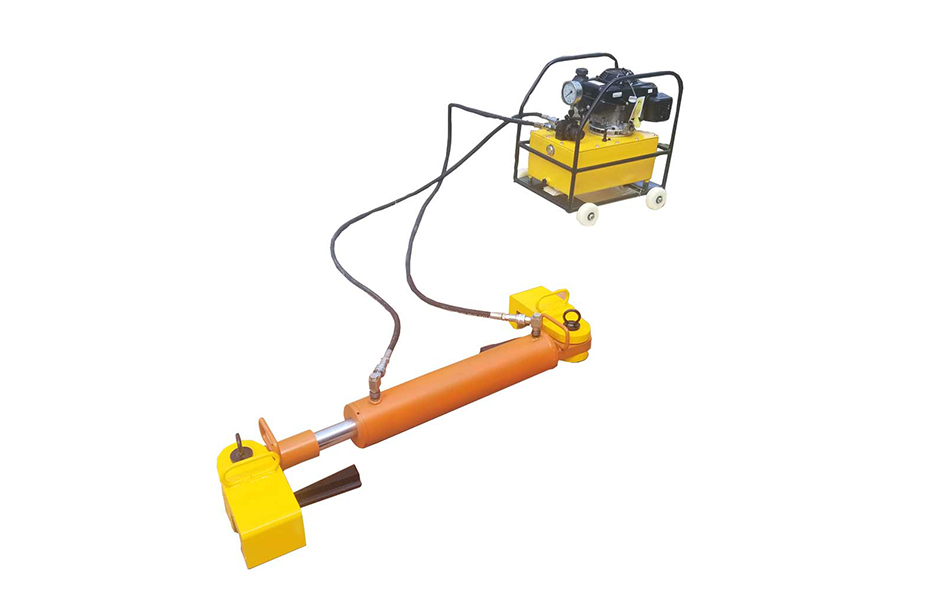

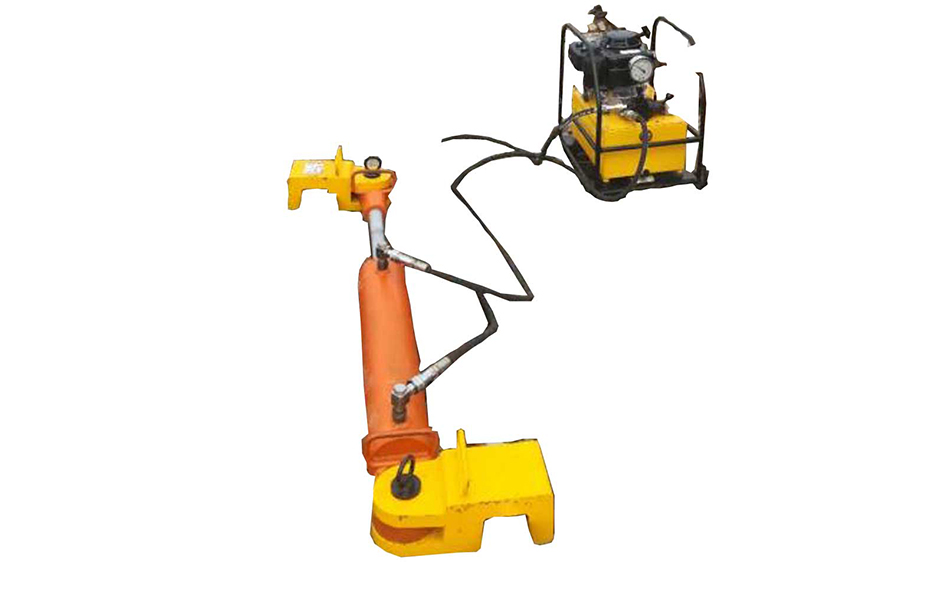

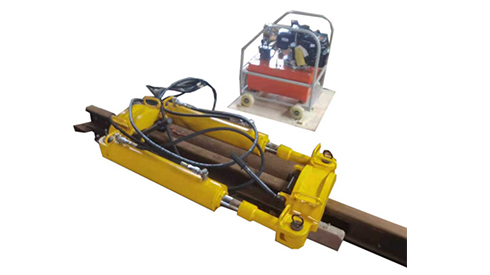

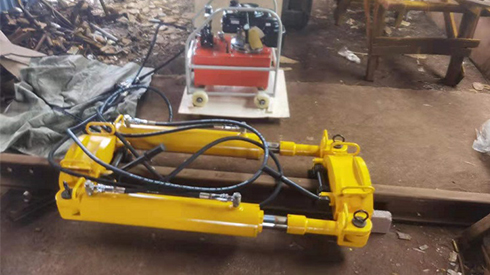

The rail stretcher is mainly composed of two rail clamping devices, two double acting oil cylinders, four pin shafts, an electric pump station and six high-pressure hoses.
Maximum rated working pressure | 57MPa |
Maximum pulling force | 2 * 450kN |
Maximum stroke of working oil cylinder | ≥ 760 mm |
Center distance between two tie rods | 360mm for 50kg / M and 60kg / M rails and 370mm for 75kg / M rails |
Locking mode | inclined iron clamping rail waist |
Unit weight | ≤ 370kg |
