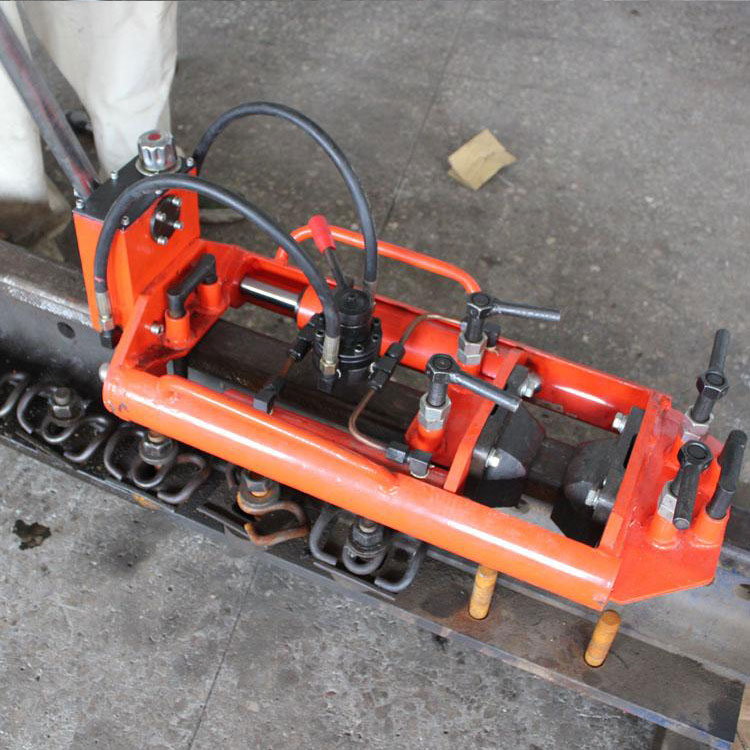

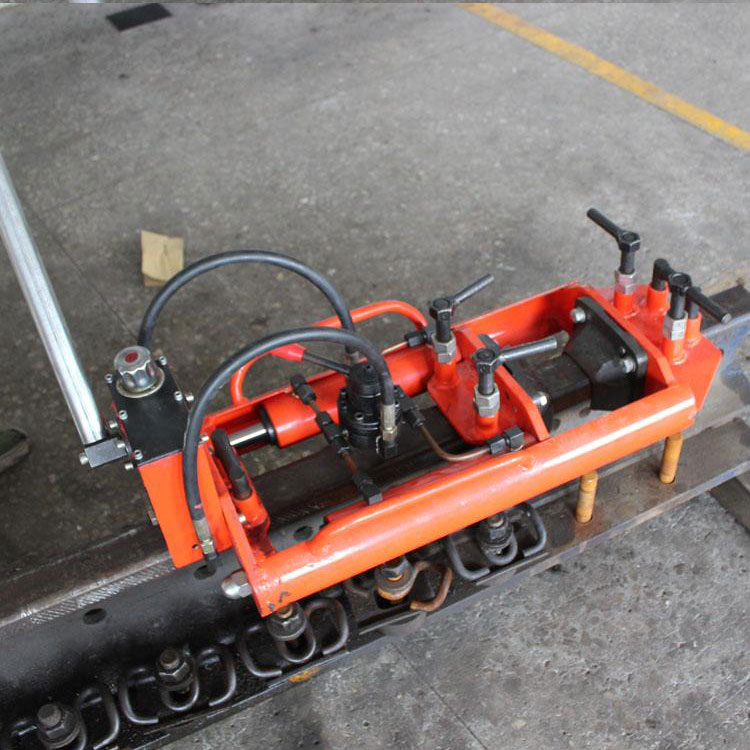

HWS-II hydraulic rail convex pusher is a small special tool for removing welding nodules in thermite welding of rails.
HWS-II hydraulic rail convex pusher is a small special tool for removing welding nodules in thermite welding of rails. It is suitable for all types of rails of 50-75 kg/m, and can be carried out on welding bases or lines. It is a matching tool for stress release and rail breakage repair of ultra-long or interval CWR.
Model | HWS-II |
Material | Stainless Steel |
Color | Orange |
Max. thrust (double cylinder) | 200KN |
Max. handle working torque | 120J |
Handle swing angle | 38° |
Working cylinder diameter | 50mm |
effective length | 150mm |
Hydraulic system pressure | 51 Mp |
weight | 75Kg |
dimension | 800*390*400mm |
Application | Various rails (50-75kg/m) at the depot or on the track. |
